Centrifuge
Centrifuge

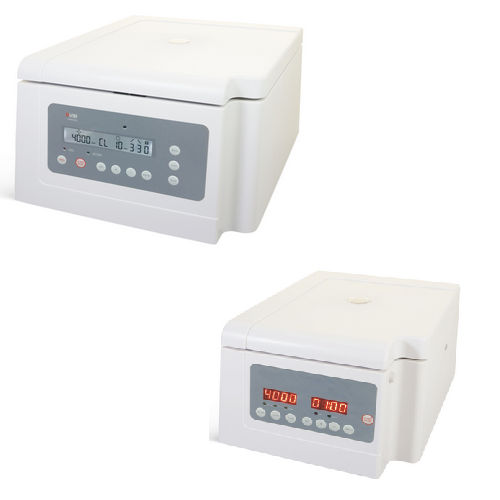

Model ID: DM0424, DM0408
Low speed clinical centrifuges are widely used in the medical industry. Ideal for separation of serum, plasma, urine, fecal samples in biochemical & medical laboratories. It is an essential equipment of every clinical laboratory, blood bank, medical college and medical research institute.
Features (DM0424)
• Max. speed 4000rpm.
• Rotor speed can be set in RPM/RCF, with 3 programs storage capacity for routine applications.
• Max. capacity 50ml×4, Adapt to different sizes of blood collection tubes and centrifuge tubes suitable for swing out rotor and angle rotor.
• Automatic internal diagnosis and self-detection.
• Maintenance-free brushless DC motor.
Features (DM0408)
• Speed range of 300-4000rpm.
• 3 programs storage capacity for routine applications.
• Automatic internal diagnosis.
• Maintenance free brushless DC motor.
Specifications | DM0424 | DM0408 |
Speed range | 500-4000rpm increment: 100rpm | 300-4000rpm increment: 100rpm |
Max. RCF | 2500×g | 1900×g |
Speed accuracy | ±100rpm | ±100rpm |
Rotor | Swing6×15ml Swing4×50ml Angle 24×15 ml, Angle 12×10ml/8×15ml | Angel 8×15ml (Default), Angel 10ml×12 |
Run time | 1-99min, HOLD | 1-99min, HOLD |
Motor | Brushless DC motor | Brushless DC motor |
Display | LCD | LED |
Program | Blood: 3200rpm,10min. Urine: 1800rpm,5min. Faecal: 1300rpm,10min. | Blood: 3200rpm,10min. Urine: 1800rpm,5min. Faecal: 1300rpm,10min. |
Safety Device | Automatic internal diagnosis | Automatic internal diagnosis |
Acceleration/deceleration | 3↑4↓steps | 25s↑35s↓ |
Power | Single phase, 100V-240V, 50Hz/60Hz | Single phase, 100V-240V, 50Hz/60Hz |
Dimension(W×D×H) | 364×440×268mm | 286×367×227mm |
Weight | 14.5kg | 9.2kg |
Noise | ≤62dB(A) | ≤60dB(A) |
Available rotors
 | S6-15 for DM0424 Max. speed: 4000rpm Rotor capacity: 15ml×6 Rotor material：Aluminum alloy Default adaptor: A15P22，A5P17 |
![{{)6YGZ]@@8A46@5RY%PW7M.png](/Uploads/image/20221104/1667527817548511.png "1667527817548511.png") | S4-50 for DM0424 Max. Speed: 4000rpm Rotor capacity: 50ml×4 Rotor material：Aluminum alloy Default adaptor: A15P30，A5P17 |
 | A24-15P for DM0424 Max. speed: 4000rpm Rotor capacity: 15ml×24 Rotor material：High strength plastic Default adaptor: A15P22，A5P17 |
 | A8-15P for DM0424/DM0408 Max. Speed: 4000rpm Rotor capacity:15ml×8 Rotor material: High strength plastic Default adaptor: A15P22 |
![{1(9~RZC{9VS55]]HKH4MLM.png](/Uploads/image/20221104/1667527881336831.png "1667527881336831.png") | A12-10P for DM0424/DM0408 DM0412/DM0412S Cat.No. 19200348 Rotor capacity: 15ml×8,10ml×12 Rotor material: High strength plastic |
Available adapters
![5Y(WEQBVNNG41%TP05IU]TT.png](/Uploads/image/20221104/1667527901439637.png "1667527901439637.png") | A15P30 50ml change 15ml adapter, Adapted to 17×120mm centrifuge tube, 13/16×100mm blood collection tube 4pcs/pk, for S4-50 |
 | A15P22 15ml adapter for 17×120mm centrifuge tube, 13/16×100mm blood collection tube 24 pcs/pk, for S6-15, A24-15P, A8-15P |
 | A5P17 5ml adapter, Adapted to 13×75mm blood collection tube 24 pcs/pk, for S4-50, S6-15, A24-15P |
 | A2P17 (Optional) 1.5/2ml Cryogenic Vials/ centrifuge tube adapter, 24 pcs/pk, for S4-50, S6-15, A24-15P, A12-10P, A6-50P |
Centrifuge Model | Rotor | Capacity | Hole Diameter (mm) | Hole Depth (mm) | Max. Tube Height (mm) | Max. Speed (rpm) |
DM0424 | S6-15 | 15mlx6 | 22 | 97.7 | 120.6 | 4000 |
S4-50 | 50mlx4 | 29.4 | 87.8 | 125 | 4000 | |
A24-15P | 15mlx24 | 22 | 97.7 | 120.6 | 4000 | |
DM0424&DM0408 | A8-15P | 15mlx8 | 22.6 | 90.8 | 120.3 | 4000 |
A12-10P | 15mlx8/10mlx12 | 18.6 | 83.4 | 123 | 4000 |
