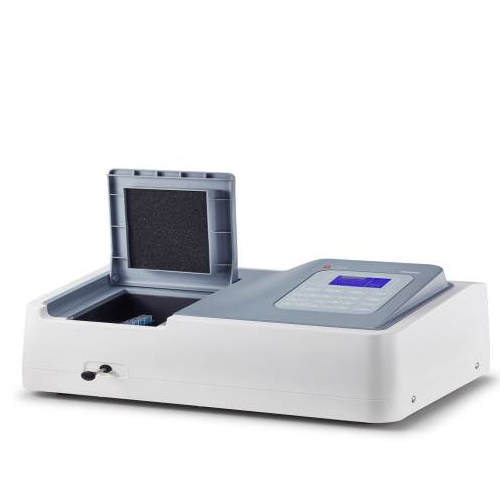

Spectrophotometer

Spectrophotometer
Model ID: SP-V1100

•   User Friendly Operation and Information Rich LCD Display: The large  128  x  64  dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format.
•   On-Board Data Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.
•   Data can be restored after a sudden power failure.
•   Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.
•   Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.



Model

SP-V1100

Optical   System

Single   Beam

Light   Source

Tungsten   lamp

Spectral   Bandwidth

2.0nm

Wavelength   Range

320-1100nm

Wavelength   Accuracy

±0.5nm

Wavelength   Repeatability

≤0.3nm

Photometric   Range

-0.3-3.0A,    0-200%T

Photometric   Accuracy

±0.002A@0.5A,
  ±0.004A@1.0A,
  ±0.3%T@100%T

Photometric   Repeatability

≤0.001A@0.5A,
  ≤0.002A@1.0A,
  ≤0.15%T@100%T

Stability

≤0.002A/h   @500nm
  (after preheat 2 hours)

Stray   Light

≤0.05%T@360nm

Sample   Compartment

 4-position,10mm
  pathlength cuvette

Display

LCD

Output

USB Port   & Parallel Port (Printer)

Dimension   (L×W×H)

490×360×210mm

Power

110/220VAC,   50/60Hz,80W

Weight

12kg
