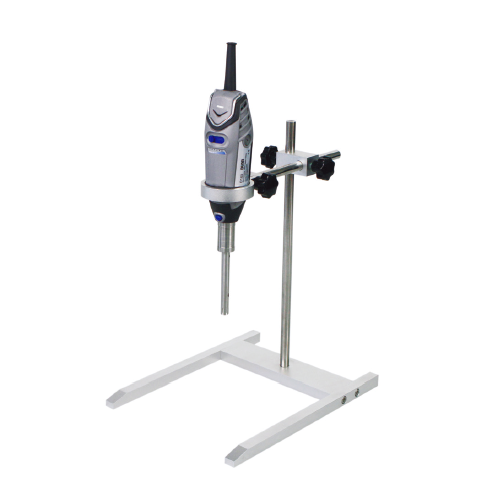

Handheld Homogenizer

Power Supply

110-120V/60Hz

220-240V / 50-60 Hz

Motor Type Universal motor

160 W

AC carbon brush motor

Speed Range

8000-30000rpm

Max. Circum. Speed

6.3-14m/sec

Speed Control Dial knob

10 stage

Working Volume [ H 2 O]

0.1-50mL (Dispersing shaft

DS-160/5)

1-250mL (Dispersing shaft

DS-160/10)

Max. Viscosity

5,000mPas

Material of Dispersing Shaft

SS 316L stainless steel, PTFE

Weight

0.54 kg

Dimension [L x W x H]

46mm x 55mm x 230mm

Noise

72 dB(A)

Operating Environment

0-40 ℃,85% rel. humidity

Protection Class

IP20
