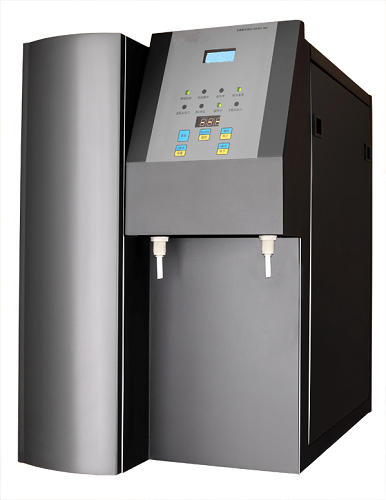

Atom Water Ultra-Purification Machine

Process

Single pass ro system

Double pass ro   system

Output of pure water

≥10L/H

≥10L/H

Output of ultra-pure water

≥1-1.5L/min

≥1-1.5L/min

Resistivity at 25°C

18.25mΩ.cm

18.25mΩ.cm

Conductivity at 25°C (Type 3 water)

≤10us/cm

≤5us/cm

TOC

＜20ppb

＜20ppb

Pyrogens

＜0.02EU/ml

＜0.02EU/ml

Absorbance (254nm, lcm optical distance)

≤ 0. 001

≤ 0. 001

Reactive Sil1ca (Si02)

< 0.01ppm

< 0.01ppm

Heavy metal

< 0.01ppm

< 0.01ppm

Electrical requirements

220V/50HZ (or   customer oriented)

220V/50HZ (or   customer oriented)

Power

≥100w

≥150w

Dimension L/W/H

34*55*53mm

34*55*53mm

Weight

≥30kg

≥39kg
