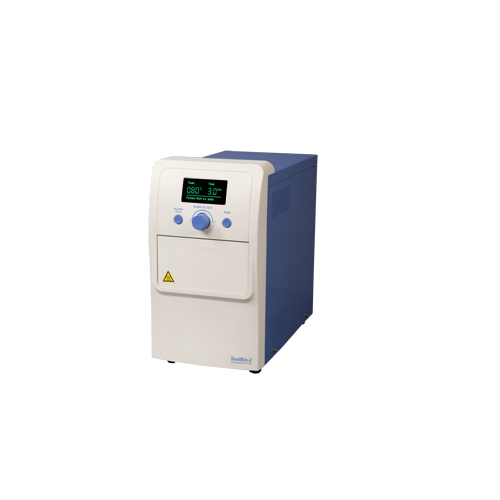

Semi Automated Plate Sealer

The Plate Sealer is a semi-automatic thermal sealer which is ideal for the low to medium throughput laboratory that requires uniform and consistent sealing of micro-plates. Unlike manual plate sealer , the produces repeatable plate seals. With variable temperature and time settings, sealing conditions are easily optimised to guarantee consistent result, eliminating sample loss. It can be applied in product’s quality control of many manufacture enterprise such as plastic film, food, medical, inspection institute, scholastic scientific research and teaching experiment. Offering complete versatility, the SealBio-2 will accept a full range of plates for PCR, assay or storage applications.

Features
1. Format different micro well plates and heat seals

2. Adjustable Sealing Temperature: 80 - 200℃
3. OLED display screen, high light and no visual angle limit

4. Precise temperature, timing and pressure for consistent sealing
5. Automatic counting function
6. Compact footprint: only 7.0 inches (17.8cm) wide

Specification
1. Display: OLED
2. Adjustable Sealing Temperature: 80 - 200℃
3. Temperature accurate: 1.0℃
4. Seal time: 0.5s～10s, increased by 0.1 sec.
5. Input power: 300W
6. Dimension(D×W×H): 370mm×178mm×330mm
7. Weight: 9.6kg
8. Seals plate heights: 9 to 48mm high
9. Compatible Plate Materials: PP (Polypropylene)
                                             PS (Polystyrene)
                                             PE (Polyethylene)
10. Compatible Plate Types:    Standard Assay Plates,
                                             Deep-Well Plates
                                             PCR Plates including skirted

Security and Energy Saving Functions
The drawer is controlled by high grad MCU, if a hand or objects blocked the drawer when it’s moving, the drawer motor will automatically reverse. This feature prevents injury to the user and unit
Special and smart design on the drawer, it’s detachable from the main device. So user can maintain and clean easily the heating element
When the unit is left idle more than 60min, it automatically switches into stand-by mode during which the temperature of the heating element is reduced to 60°C to save energy
When the unit is left idle more than 120min, it switches off automatically for added safety. It switched off the display and heating
