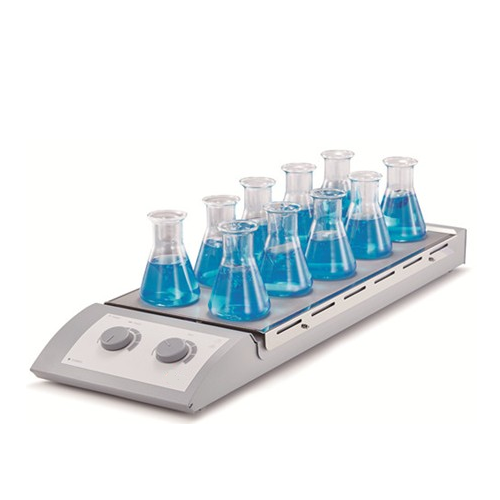

Multi-channel (Hotplate) Magnetic Stirrer

Work plate Dimension

180x450mm

Work plate material

Stainless steel with silicone

Motor type

Brushless DC motor

Motor rating input

12W

Motor rating output

4W

Power

490W

Heating output

470W

Voltage

100-120/200-240V  50/60Hz

Stirring positions

10

Max. stirring quantity [H2O]

0.4Lx10

Max. magnetic bar[length]

40mm

Speed range

0-1100rpm

Speed display

scale

Temperature display

scale

Heating temperature range

Room temp.-120°C

Over heat Protection

140°C

Temperature display accuracy

IP42

Dimension [W x D x H]

182×622×65mm

Weight

3.2kg

Permissible ambient   temperature and humidity

5-40℃ 80%RH
