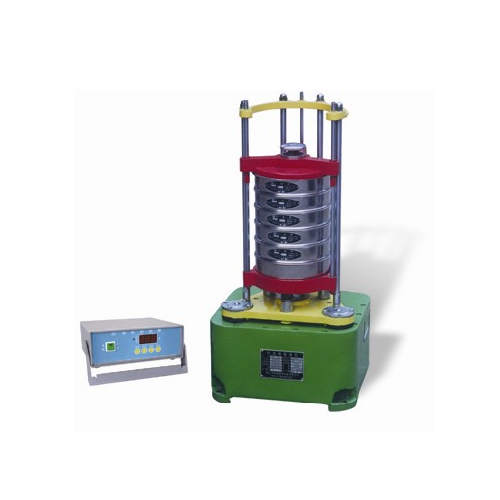

Standard Sieve Shaker

Standard Sieve Shaker
Order No.: CSI-200B

This machine is a specialized equipment for classifying and screening particle materials matching standard testing sieve of ¢ 200 mm. It has reliable performance. And it is flexible and convenient to clamp screen and can be controlled by showing number. According to the needs of the users, it can sieve a variety of samples with all kinds of characteristics. It is mainly used for sieving analysis by the coal, power, metallurgical, building materials, chemical, geological and other industrial departments.



Main technical parameters:

Model

CSI-200B

Diameter of matching screen

200mm

Rocking frequency

221min-1

Vibrating frequency

147min-1

Radius of gyration

12.5mm

Amplitude

5mm

Motor

0.37kw

Working Power

Three-Phase 380V

Weight

110kg

Dimensions

640×430×940mm

Control type

Intelligent digital display control
