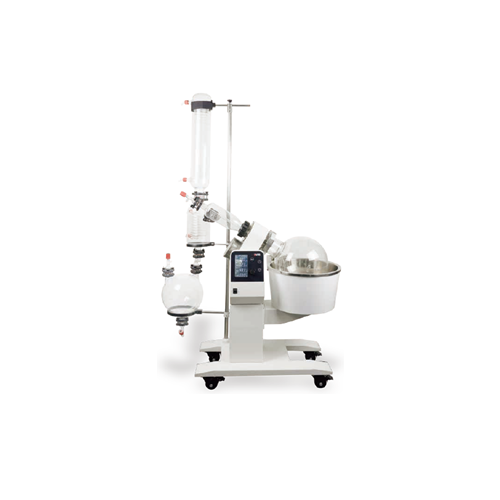

20L Digital Rotary Evaporator

20L Digital Rotary Evaporator
Model ID: RE200-Pro

Features

• Large LCD digital display with heating temperature, rotation speed, clockwise and Anti-clockwise, time information;

• One-click automatic motor lifting (stroke 180mm), smooth and silent;

• Water/oil heating bath with wide temperature range from room temp to 180°C;

• Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process;

• Double-layer high-efficiency condensing tube with large condensation area and strong evaporation capacity, ensuring efficient sample recovery;

• Patented PTFE double sealing ring with excellent sealing performance；

• A switching valve for continuous collection without compromising the system vacuum and solvent distillation.

Specifications	RE200-Pro
performance	Temperature range	Room temp. ~180oC (both water and oil)
	Control Accuracy	Water: ±1℃ Oil: ±3℃
	Rotation Speed	10~150rpm
	Evaporation capacity	Max.4.0L/h (water vapor volume)
	Ultimate vacuum	Less 2.6hpa
function	Temperature control method	Micro processer PID control
	Display	LCD (temperature/speed/clockwise and Anti-clockwise/time)
	Stroke Displacement	Automatic 180mm
	Safety features	Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection
constitute	Sample flask	Round flask 20L
	Receiving flask	Round flask 10L with drain valve
	Condenser	Two-section vertical triple serpentine condenser, cooling surface 1.2m2
Specification	Heating bath size	φ450×240mm
Specification	Takeover caliber	Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm
Dimension[D×W×H]	1160mm×600mm×1860mm
Power supply	220V/4600W/50/60Hz
