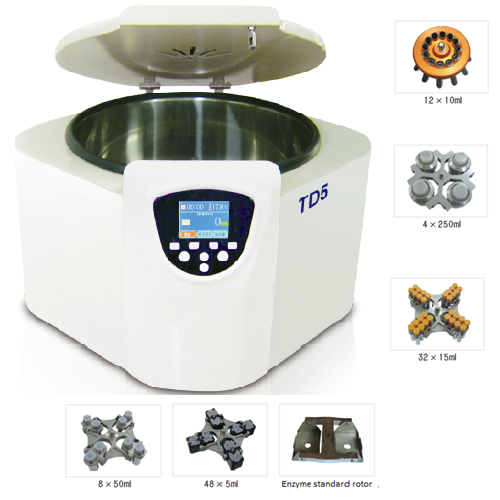

Table type Low speed Centrifuge
Product ID：TD5A/TD5
Features
1. Enhanced ergonomics to achieve a streamline design that is safe, aesthetic and practical.
2. With TFT true-color LCD wide-screen touch monitor featured by intelligent control, easy and convenient operation, a touch panel and a simultaneous indication of both the set parameters and operation ones.
3. With a complete steel structure and a stainless-steel centrifuge cavity, it is sturdy and durable.
4. Variable-frequency brushless motor that is maintenance and dust-free.
5. 10 kinds of speed-up and speed-down options. Can store 20 user program which can be directly used by the user. The program previously used with be running when the machine is started.
6. With a dedicated key indicating the centrifugal force.
7. With a motor gate lock mute mechanical & electrical integration.
Technical parameters
Model | TD5A | TD5 |
Max Speed(r/min) | 5500 | 5000 |
Max RCF(×g) | 4800 | 4800 |
Max Capacity | 4×250ml | 4×250ml |
Time range | 0-99h59min | |
Operation programme | 20 | |
Control and driver system | Frequency motor，micro control，direct drive | |
Total power | 500w | |
Noise | ≤65dB | |
Power | AC220V 50Hz | |
Weight | 35kg | |
Dimension(L×W×H) | 600×540×360mm | |
Rotor parameters
Model | Capacity | TD5A | TD5 | ||
Speed (r/min) | RCF (xg) | Speed (r/min) | RCF (xg) | ||
Angle rotor | 12 × 10ml | 5500 | 4328 | / | / |
Swing bucket rotor | 12 × 15ml | 5000 | 4500 | / | / |
24 × 10ml | 5000 | 4500 | / | / | |
4 × 250ml | 4000 | 3290 | 4000 | 3290 | |
Adaptor | 8 × 50ml | / | / | / | / |
24 × 15ml | / | / | / | / | |
32 × 10ml | / | / | / | / | |
40 × 5ml | / | / | / | / | |
Swing bucket rotor | 8 × 50ml | 4000 | 2810 | 4000 | 2810 |
4 × 50ml | 5000 | 4600 | 5000 | 4600 | |
4 × 100ml | 5000 | 4800 | 5000 | 4800 | |
24× 15ml | 4000 | 2810 | 4000 | 2810 | |
32 × 15ml | 4000 | 2810 | 4000 | 2810 | |
32 × 10ml | 4000 | 2810 | 4000 | 2810 | |
48 × 5ml/2ml | 4000 | 2940 | 4000 | 2940 | |
76 × 5ml/2ml | 4000 | 3100 | 4000 | 3100 | |
Swing bucket enzyme standard plate rotor | 2×2×96holes | 4000 | 2360 | 4000 | 2360 |
