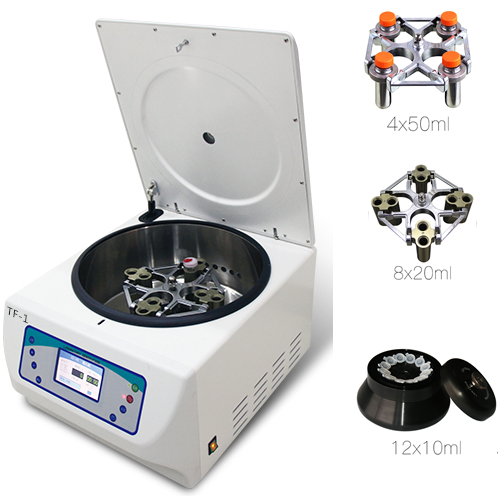

Product ID:TF-1
Features
1. Microcomputer control, preset: centrifugal force, rotation speed, centrifugation time, working program, LCD synchronous display
2. Keyboard set working parameters, with centrifugal force dedicated setting button
3. Direct drive with high torque DC variable frequency brushless motor, stable operation and low noise
4. Secure electronic door lock, unlocked when starting, ensuring safe operation
5. A variety of work programs are stored, users can freely program, store, and only call the program number set by them when working, avoiding repeated settings and improving work efficiency.
6. 8-speed acceleration/ deceleration rates for selection, users can set the speed up and down according to the sample demand.
7. With jog or short spin function
8. Synchronous setting centrifugal force, speed, and synchronous display.
9. Stainless steel centrifugal chamber to avoid corrosive substances
10. Automatic balance, unbalance protection, error or imbalance, voice signal prompt; automatic imbalance recognition; overspeed protection
11. The fastest lifting speed time ≤ 28s
12. Suitable for 10ml, 20ml, 50ml conventional syringes and orthopedic PRP special centrifuge tubes
13. Both the rotor and the pendant can be sterilized by high temperature and high pressure
Host parameters
Max. speed | 5000r/min |
Max. RCF | 4760×g |
Timing range | 1-99min59s |
Speed accuracy | ±20rpm |
Maximum capacity | 4×50ml |
Power supply | AC220V 50Hz |
Machine noise | <60dB(A) |
Motor Power | 750W |
Weight | 35kg |
Dimensions | 580×460×360(L×W×H) |
Rotor parameters
Rotor Model | Max (r/min) | Max. Capacity (ml) | Max. RCF |
No.1Swing Bucket rotor | 5000r/min | 4×50ml (Suitable for 50ml syringes) | 4760×g |
No.2Swing Bucket rotor | 4000r/min | 8×20ml (Suitable for 20ml syringes) | 3040×g |
No.3Angle Rotor | 4500r/min | 12×10ml (Suitable for 10ml syringes) | 3395×g |
