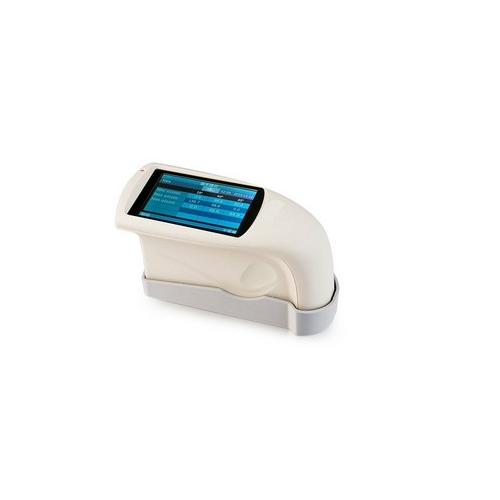

Precise Gloss Meter

Tri gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class glossmeter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

Tri gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

Features:

1. 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand

2. Concise appearance, feel good

3. Display 5 sets of measurement data, good for comparison

4. Built-in lithium ion rechargeable battery

5. Basic model measurement can meet basic glossiness testing requirements

6. Connect to PC, more extend functions

7. One button for all angles measurement at the same location

8. Comply with international standards

9. Stable performance, easy to read data.

Specifications:

Measuring Angle: 20°/60°/85°, Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measuring Area (mm): 20°: 10x10,60°: 9x15,85°: 5x36

Measuring Range: 20°/0~1000GU,60°/0~1000GU,85°/0~160GU

Division Value: 0.1GU

Measurement Range: 0-10GU,10-100GU,100-1000GU

Repeatability: ± 0.1GU, ± 0.2GU, ± 0.2%GU

Reproducibility: ± 0.2GU, ± 0.5GU, ± 0.5%GU

Measurement Standard: Conform with JJG696 first class gloss meter working requirement

Chromaticity Corresponding: Corresponding with CIE 1931(2°)  under CIE C light source

Errors: ±1.5, ± 1.5%

Measuring Time: 0.1s

Dimension: L*W*H: 160mm*75mm*90mm

Weight: 350g

Language: English

Battery: 3200mAh Li-ion Battery,>10000 times (within 8 hours)

Display: TFT 3.5 inch

Interface: USB/RS-232

Storage: Basic mode: 1000

Software: GQC6 Quality Control Software with QC report printing functions and more extended functions

Operation Temperature: 0~40℃ (32~104°F)

Storage Temperature: -20~50℃ (-4~122°F)

Humidity: <85% relative humidity, no condensation

Standard Accessories: Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate

Optional Accessories: Miniature Printer

Note: The specifications are subject to change without notice.
