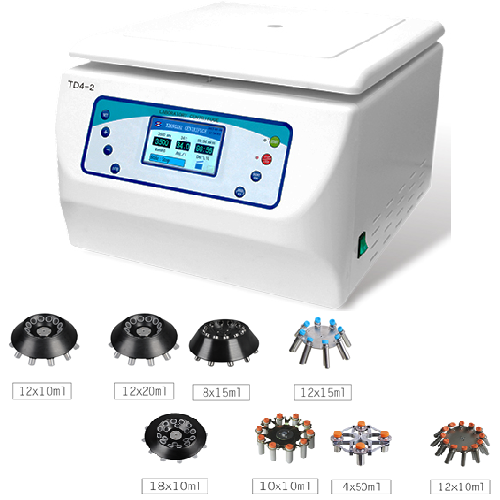

Desktop low-speed centrifuge

Product ID:TD4-2

Desktop low-speed centrifuge can be widely used in clinical, biochemical, food and environmental protection fields, and is a conventional instrument for centrifugal sedimentation in the laboratory.



Features

1.       Microcomputer control, DC brushless motor, low noise during operation and high-speed accuracy.

2.       Automatic balance, with large capacity, small temperature rises in the centrifugal chamber.

3.       LCD display, user-friendly interface, more convenient operation.

4.       Equipped with electronic door lock, door cover protection, automatic fault alarm identification, safe and reliable.



Host parameters

Model

TD4-2

Maximum   speed

4000r/min

Max.   RCF

2690×g

Maximum   capacity

12×20ml,

Motor

Brushless Motor

Total   power

100W

Control   method

Microcomputer control

Timing   range

1~99min59s

Machine noise

55dB

Power supply

AC220V 50Hz 5A

Net weight

22kg

Gross weight

25kg

Dimensions

480×340×280mm(L×W×H)

Packing Size

540×430×355mm(L×W×H)



Rotor parameters

Rotor Model

Max (r/min)

Max. Capacity (ml)

Max. RCF

No.1Angle Rotor

4000r/min

12×10ml

2220×g

No.2Angle Rotor

4000r/min

12×20ml,

2220×g

No.3Angle Rotor

4000r/min

12×15ml

2220×g

No.4Angle Rotor

4000r/min

18×10ml

2240×g

No.5Swing Bucket rotor

4000r/min

4×50ml

2420×g

No.6Swing Bucket rotor

4000r/min

8×15ml

2690×g

No.7Swing Bucket rotor

4000r/min

10×10ml

2500×g

No.8Swing Bucket rotor

4000r/min

12×10ml

2090×g
