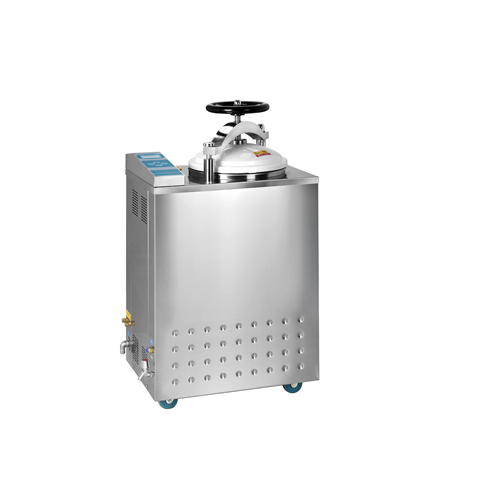

ELECTRIC-HEATED VERTICAL STEAM STERILIZER (Fully vacuum automatic microcomputer)

Product ID: VAC-LS-35HV/50HV/75HV/100HV

Characteristics:

1.Automatically controlled by computer, digital display of working status, touch type key.

2.Dynamically showed the temperature, pressure time and vacuum rate and the full cycle

3.fully automatically route for water inlet, pulse vacuum, heating, sterilizing, draining, exhausting, vacuum drying.

4.3 times pulse vacuum, which make the vacuum rate as -0.081mpa, and ensure the high extracting of inner air from dressing, A.B type hollowed appliance.

5.with 4 fixed programs for appliance, medical dressing, rubbers and fluid, and the user can also set the program as they need.

6.equipped with the PT/TT testing connector, easy to run the testing.

7.Multiple pulse vacuum drying after sterilizing, ensure the nice sterilizing.

8.Equipped with bacteria filter, ensure the sterile air enter the inner vacuum environment, avoid the second contamination.

9.hand wheel type of quick-open door structure, self-inflating type seal.

10.adopted with immersed heating, with high heating efficiency.

11.steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

12.automatically shut off with beep reminding after sterilization.

13.fully high quality stainless, equipped with double stainless-steel basket.



TECHNICAL DATA:

Model

technical   data

VAC-LS-35HV

VAC-LS-50HV

VAC-LS-75HV

VAC-LS-100HV

Chamber volume

35L(φ318×450) mm

50L(φ340×550) mm

75L(φ400×600) mm

100L(φ440×650) mm

 working pressure

0.22MPa

0.22MPa

0.22MPa

0.22MPa

Working   temperature

134

134

134

134

Heat average

≤±1

≤±1

≤±1

≤±1

Timer

099min

099min

099min

099min

Adjustment of   temperature

105134

105134

105134

105134

Power

2.5KW /AC220V.50Hz

3KW /AC220V.50Hz

4.5KW /AC220V.50Hz

4.5KW /AC220V.50Hz

Overall dimension

600*410*1030(mm)

690×470×1140(mm)

730*510*1270(mm)

730*550*1305(mm)

Transport   dimension

730*500*1170(mm)

760×550×1290(mm)

820*600*1380(mm)

840*640*1410(mm)

G.W/N.W

96Kg/ 77Kg

120Kg/ 100Kg

140Kg/ 118Kg

160Kg/ 128Kg
