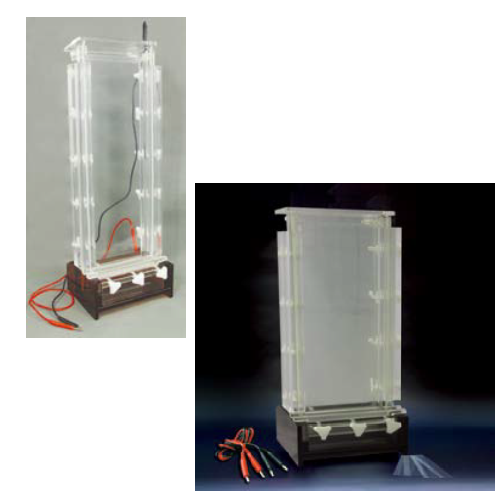

DNA sequence analysis electrophoresis cell
Product ID：DYCZ-20A/20B
Features | • Easy to cast the gel; • Transparent, no obstructions to visibility; • Distinctive design for elimination of heat, there is a room between the gel room and the main tank plate, which is for buffer solution and buffer solution will eliminate the heat produced during the running; • Easy to assemble the electrophoresis system; • High quality and clear electrophoresis patterns can be obtained; | • Easy to cast the gel; • Transparent, no obstructions to visibility; • Distinctive design for elimination of heat, there is a room between the gel room and the main tank plate, which is for buffer solution and buffer solution will eliminate the heat produced during the running; • Easy to assemble the electrophoresis system; • High quality and clear electrophoresis patterns can be obtained; |
Specifications | • Gel dimension (L x W): 580 X 170 (mm); • Runs up to 26 samples (Great Wall teeth comb) or 32 samples (shark teeth comb); • Comb thickness: 0.4 (mm); • Buffer volume: about 850 ml; • Size (L X W X H):240×210×655 (mm); • Weight: about 10.5 KG | • Gel dimension (L x W): 480 X 170 (mm); • Runs up to 26 samples (Great Wall teeth comb) or 32 samples (shark teeth comb); • Comb thickness: 0.4 (mm); • Buffer volume: about 750 ml; • Size (L X W X H):240×210×550 (mm); • Weight: about 9.0 KG |
Application | For DNA sequencing, Differential display, AFLP or SSCP research and Oligonucleotide analysis etc. Suitable Electrophoresis Power Supply DYY-10C, DYY-12 and DYY-12C. | For DNA sequencing, Differential display, AFLP or SSCP research and Oligonucleotide analysis etc. Suitable Electrophoresis Power Supply DYY-10C, DYY-12C or DYY-12. |
