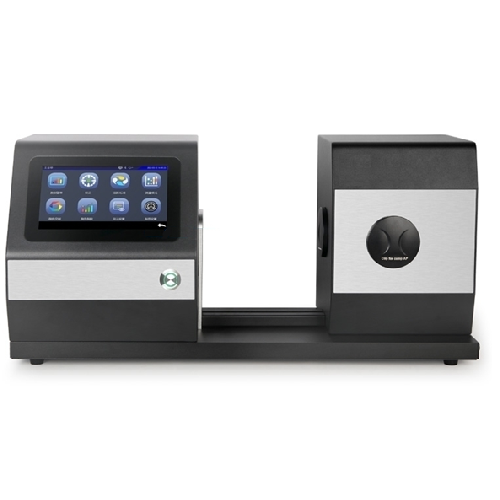

Horizontal Type Haze Meter

Haze Meter can easily realize ASTM D1003 non-compensation method, ISO 13468 compensation method, full light transmittance, haze test. Open sample chamber can be vertical, horizontal test, adapt to more samples under test. YH1210 haze meter adopts PD array detector, which can meet the visual response of CIE V(λ)2 degrees. The compensation method can realize the high-precision and repeatable measurement of transmittance and haze data.

 Advantages

1. Double standard ISO & ASTM

It can meet the test standard requirements of different users; meet the standards: ASTM D1003/1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, JIS K7105, JIS K7361, JIS K 7136

2. Easy operation and faster and more accurate measurement

The YH1210 Haze Meter is equipped with large size touch screen, easy to operate, using PD array detector, to meet the CIE V(λ)2-degree visual response to achieve high precision and repeatable transmittance and haze measurement. USB data output device, can be connected with the laboratory system.

3. Dynamic measurement

Independent light source detector and temperature sensor to monitor the light source and environmental changes at all times to ensure reliable test data.

4. Compensation port to make the measurement data more accurate

Meet the standard of ASTM D1003 non-compensation method, ISO 13468 compensation method, it can do full light transmittance, haze test, and provide more accurate test results.

5. Convenient measurement and wide sample adaptation

Open measurement area for vertical and horizontal testing to accommodate more samples under test.

6. Quality management software

It provides powerful software for measuring and analyzing haze, color and light transmittance, which is suitable for quality monitoring and tabulating management of haze, light transmittance and color data in various industries. Data the management of users on the PC computer, compare the haze, transmittance and color differences, generate test report forms, facilitate customer customization and management.

Application

YH1210 Haze Meter is widely used in glass processing, plastic processing, film, display screen processing, packaging industry, liquid analysis and other aspects
