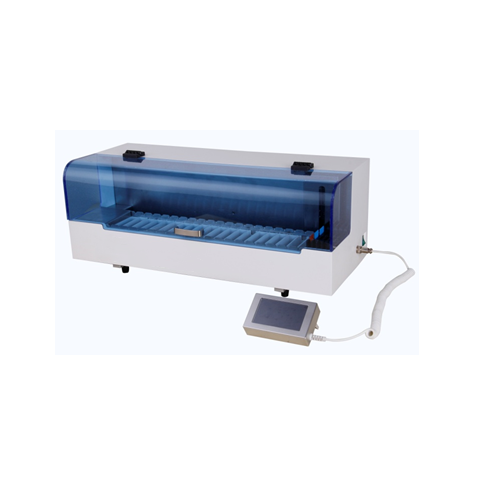

Fully Automated Slide Stainer

Product ID:SF-QS1100

Features:

This Stainer is used in Hospital, Medical College, Sanitation and Anti-epidemic Station, Biological Research Lab, etc. It was more advantage on fast staining, comfortable and safe operation for user. And also the unit has an optical plastics cover and the air exhausting device to make it more safety and environmental. The Slide rack can be put in any station, it will run after self-induction. The unit has high efficiency on staining progress.

§   Small Size for the unit. With LED touch operation system. It has unique design for the mechanical arm with low energy consumption.

§   Sample can be added anytime for continuous staining.

§   When one station takes longer working time, more repeat station can be set for speed up working process.

§   From No.2 Station to No.17 Station can be set to water clean. It has function for Auto Start / Stop on cleaning, and Water flow can be adjusted according to requirements.

§   Any station can be set for end station; it will buzz until staining work finished.

§   With water protection device, when water blockage, it will shut off water resource itself and make the warning cue.

§   On auto working progress, station can be changed anytime according to requirements.

§   Staining Work State shown by Dynamic Graph

Technical Specifications:

§   Capacity: 6pcs slides in each holder, for continuous staining process

§   Numbers of Station: 20pcs, Repeat Station, Clean Bath can be set

§   Volume of Station: 135ml

§   Length of Processing Time in the Cup: Adjustable within 0 - 59 minutes and within 0 -59 seconds

§   Time for Changing Station, Stay and Leaching Liquid: 10S

§   Numbers of Program: 10pcs, with remind code for online faulty

§   Working Voltage: AC220V±10% 50Hz /   AC110V±10% 60Hz

§   Frequency: 50Hz/60Hz

§   Power: 100W

§   Dimension: 705×300×280 mm (W×D×H)

§   Net Weight: 21kg
