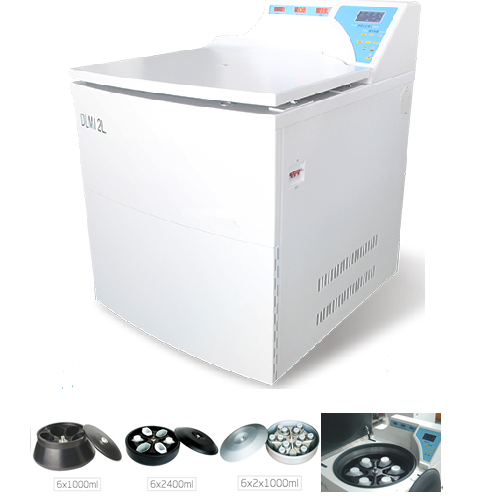

Ultra-large capacity refrigerated centrifuge

Product ID:DLM12L

Ultra-large capacity refrigerated centrifuge is our first large-capacity refrigerated centrifuge with international advanced level. It is suitable for blood station hospitals, biochemistry, biological products, pharmaceutical industry, universities and research institutes, but also superhard materials diamond powder industry, nanomaterials and other fields of the preferred products, the separation effect meets international industry standards.



Features

1.       Adopt the most advanced digital control circuit in the world to make the centrifuge speed more accurate and stable. It is the first to adopt high-power variable frequency speed control motor and equipped with the most advanced frequency converter to ensure the longer service life of the whole machine.

2.       Refrigeration adopts imported compressor unit, the temperature can be adjusted arbitrarily, high temperature control accuracy, low noise.

3.       Large capacity: 6 × 2400ml or 18 x 400ml blood bags can be separated at one time, with a variety of dispensers.

4.       The left digital display shows the actual cavity parameters, which can intuitively observe the cavity speed, temperature and timing time from a long distance; the right LCD color screen displays the full English operating system.

5.       The operating program can be edited, stored, and available; the user can set 30 programs for daily operation; The 1~10 speed acceleration/ deceleration rate allows the user to flexibly select the appropriate centrifugation process, with a variety of centrifuge bottles (cups) for the user to select the best centrifugal effect and RCF value is automatically calculated.

6.       Centrifuge has speed measuring hole, stainless steel cavity, automatic suction electronic double-button safety door lock; safety measures such as overspeed protection, over temperature protection, unbalance protection and fault self-diagnosis system, four-layer steel protective cover to ensures human and machine security.

7.       This machine adopts the most advanced multi-stage damping system and the most reliable driving structure to make the whole machine more stable. The maximum speed of 6×2400ml horizontal rotor can reach 4600r/min, which is safe and reliable. It is in the leading position in the industry and the maximum unbalance error value of the sample is 50g, equipped with a computer cable interface.



Host parameters

Model

DLM12L

Max.   Speed

8000   r/min

Max.   RCF

14336×g

Max   Capacity

6×2400ml

Temperature   control range

-20~+40

Speed   accuracy

±20r/min

Temp   accuracy

±1

Compressor

Imported   high performance compressor unit, environmental protection refrigerant (R404a)

Timer   range

1   min~99min59s

Lifting   speed

1~10

Control   and drive system

Converter   motor, microcomputer control, direct drive system

Daily-use   program

30

Motor   power

4kw

Refrigerator   power

2.5kw

Total   power

6.5KW

Machine   noise

58dB

Power   supply

AC220V   50Hz 30A

Net weight

500kg

Gross weight

587kg

Error value

50g

External   dimension

960×860×1200mm(L×W×H)

Packing size

1150×970×1360mm(L×W×H)





Rotor parameter

Rotor   model

Max (r/min)

Max. Capacity (ml)

Max. RCF

No.1   Angle rotor

8000r/min

6×1000ml

14336xg

No.2 Swing Bucket rotor

4600r/min

6×2400ml

7060xg

No.3   Swing Bucket rotor

4200r/min

6×2×1000ml

5900xg
