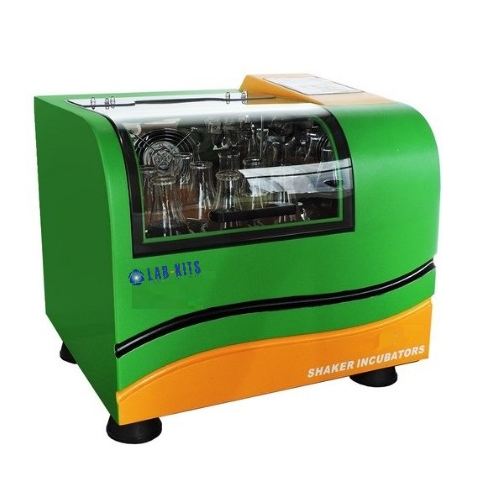

Bench shaker incubator

Product ID:SI-ST20H/ ST50H/ ST80C

Features:

1.       Incubator and oscillator in one body.

2. The shell is made of high-quality steel plate, cavity mirror stainless steel components.

3. Product mute design, electrostatic spray box, large tempered glass window, luxurious and beautiful shape.

4. Tilt-style humanized control panel, large-screen LCD display, temperature, time, rotation speed and running status are displayed on the interface.

5. Operation parameter memory function, power supply unexpectedly powers off, automatically call the original set parameters to run after the call.

6. Operation parameter encryption function to avoid human misuse.

7. High-precision speed control: PID feedback control, motor speed is stable and accurate, accuracy ± 1rpm.

8. High-precision temperature control: PID feedback control, measurement accuracy 0.1 °C, the measured temperature deviation from the set value of ± 3 °C when the sound and light alarm.

9. Three-dimensional integral partial three-wheel drive, running smooth, stable, durable and reliable.

10. Motor overheating, temperature out of control automatic protection device.

11. Slow start design, to prevent splashing caused by a sudden start splashing liquid, effectively ensure the safety of the sample.

12. Large torque motor to ensure continuous work without maintenance.

13. Electronically controlled adjustable closed loop heating and cooling system. Silent fan design and forced convection and unique air duct design ensure a good constant temperature effect and temperature uniformity.

14. The cooling method is automatic, and the opening and closing of the refrigeration system can be automatically adjusted according to the change of the ambient temperature without manual operation. (SI-ST80C)

15. Intelligent refrigeration frost-free operation technology, can make the equipment stable operation at low temperature for a long time, automatic frost function. (SI-ST80C)

Parameters

Model

SI-ST20H

SI-ST50H

SI-ST80C

Control mode

P.I.D microcomputer processing

Display mode

LCD

Convection mode

Forced convection

Oscillation mode

Cyclotron Oscillation

Drive mode

Multidimensional drive

Ambient temperature

5~30

Rotational frequency (Rpm/min)

0 or 30~300 (stable controllable range 50~250)

0 or 20~400 (stable controllable range 50~250)

Frequency accuracy (rpm)

±1 (RPM≥ 70rpm/min)

Oscillation   Amplitude (mm)

Φ26

Maximum configuration

50ml×12 or 100ml×9

100ml×16   or 250ml×12 or500ml×9

100ml×25   or 250ml×16 or 500ml×12

Standard configuration

100ml×9

50ml×4100ml×4250ml×3500ml×3

50ml×5100ml×5250ml×4500ml×3

Pallet size (mm)

295×245

400×370

450×410

Timing range (h)

0~99.9 (Any time,   continuous duty)

Temperature control range (°C)

room temperature +5~60

3~60 (ambient temperature~25°C)

Temperature control accuracy (°C)

±0.1

Temperature uniformity (°C)

≤±1 (37°C)

Temperature fluctuation (°C)

≤±0.5 (37°C)

Pallet quantity

1pc

External Dimensions (mm)

470×415×363

419×582×438

780×731×500

Internal dimensions (mm)

338 × 295 × 214

406×446×272(51L)

488×453×345

Power (W)

400

500

Power supply

AC220±10% 50~60Hz

Net weight (KG)

31

72

100
