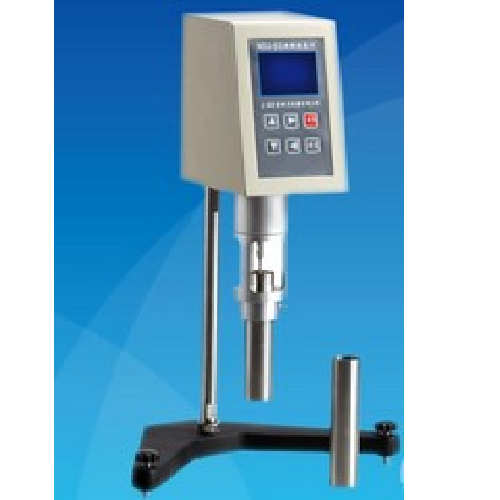

Rotational Viscometer

Product ID:PT-NDJ-5S

I. Summary

Adopting advanced mechanical design technology, manufacture technique and microcomputer controlling technology, it can collect data accurately. Using white background light and ultra-bright LCD, it can show test data clearly.

The instrument has the characteristics of high sensitivity, reliability, convenience and good looking. It is used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids. It can be widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, detergents, and other fluids.



I. Main technical specifications

1. Measurement range: 10 mPa•s100000 mPa•s

2. Spindle: No.1No.4, total four spindles

3. Rotation speed: 6 RPM, 12 RPM, 30 RPM, and 60 RPM; stepless speed regulating

4. Measuring accuracy: ±1% (F•S)

5. Power supply: AC 220 V±10%, 50 Hz±10%

6. Working environment: Ambient temp.: 5 35 , Relative humidity: ≤ 80%



II. Optional accessories

1. HWY-10 Circulatory water bath

2. Double-layer sample cup

3. No.0 spindle

4.Small sample adaptor
