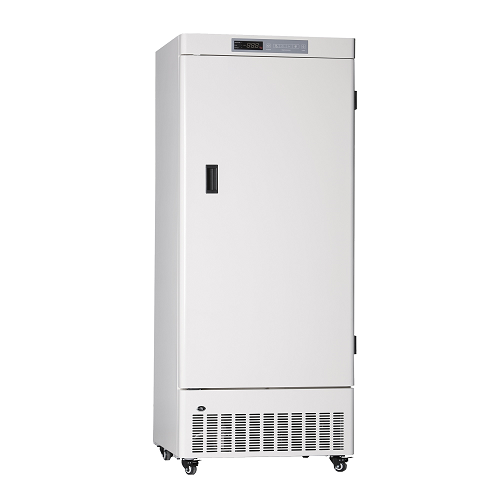

-25℃ Biomedical Freezer

Product ID: MDF-25V328E

The -25 deep freezer offers a large capacity storage space .

Integrated design of cold shelf and evaporator provides additional refrigeration efficiency.



This products designed to store vaccines blood plasma, and many other biological materials, Installations can be found in researching institution and clinical sites in life science, electronic testing and medical markets.



Features

l  Chemically stable, CFC-free, commercially available and environmentally,safe refrigerant.

l  High density foam insulation for rigidity and stable storage temperature.Microprocessor control, digital display adjustable temperature rage: -10--25.

l  LED digital display for clear observation.

l  Wide voltage tolerance design with applicable voltage range of187~242 V/AC.



Safety

l  Multiple malfunction alarms including high and low temperature , sensor error

l  Two types of alarm indications: audible buzzing and visible flashing light.

l  Door lock for storage safety



Humanized design

l  Upright side door with build-in handle for easy-opening; limit door hinge to prevent collision when door open .

l  Lockable caster design for customer to move as needed .

l  Controller password protect function to avoid change running parameter randomly.



Certificate:

l  ISO14001.ISO9001.ISO13485.ISO45001.CE,FDA List



Warranty

l  1 year free spare parts and remote technical support.



Special

       Environmentally friendly refrigerant

       Easy-to-clean sprayed steel plate material; Not easy to adhere to dust





Performance


Refrigeration System

Temperature   Range

-10~-25°C

Compressor/Brand

1/CUBIGEL

Ambient   Temperature

+10~+32°C

Refrigerant

R290

Controller

Microprocessor

Cooling   Type

 Direct cooling

Display

Digital   Display

Defrost   Type

Manual




Electrical Data


Dimensions

Power   Supply(V/Hz)

220~240V/50~60;115/60

Capacity

328L

Rated   Power(W)

180

Interior   Size(W*D*H)

508*455*1393mm

Electrical   Current(A)

1.4

Exterior   Size(W*D*H)

690*680*1900mm

Power   Consumption

3   kWh/24h

Package   Size(W*D*H)

750*760*2030mm

Power   failure alarm

8H


N.t./G.t.(approx)

104/125kg




Loading   Qty(20'/40'/40'H)

21/48/48









Alarm


Accessories

High/Low   Temperature

Y


Caster

4

Sensor   Error

Y


Remote   alarm port

Y

Power   Failure

Y


Inner   Door

5

Door   ajar

Y


Shelf

4

Thermostat failure

Y


Test   hole

1/25MM

Condenser   clean

/


Data   logger

Optional
