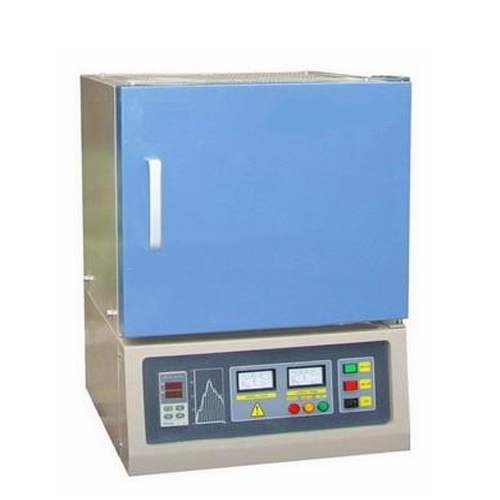

MF1600 series box-type furnace

Product ID: MF1600 series

Product features of MF1600 series box-type furnace:

The company is adopting international advanced technology, its own research and development of high performance and energy-saving electric stove, products with advanced and reasonable structure, adopts international ceramic fiber board by a unique process to build a furnace, and uses the multistage intelligent program controller of automatic control for the whole process of high temperature, comprehensive performance index, the leading domestic level.
This series of products, rated temperature were 1100℃,1400 ℃,1600 ℃,1700 ℃, the use of different heating elements, models complete, safe and reliable, but also to meet different experimental process and special manufacture, suitable for electronic ceramics and high temperature structural ceramics, glass sintering precision annealing and crystallization, crystal precision annealing, ceramic glaze preparation, powder metallurgy sintering, nanometer materials, metal parts quenching and all required rapid heating process requirements of the heat treatment, scientific research units, universities, industrial and mining enterprises the ideal experiment and production equipment.

Detailed information of MF1600 series box-type high-temperature oven:
1. Incinerator body adopts the double-layer shell structure, double shell is arranged between the fans, and can fast temperature rise, low surface temperature of the furnace shell.
2. Hearth material the use of high-quality imported alumina polycrystalline fiber vacuum adsorption material, energy-saving 50%, a heating element adopts Silicon molybdenum rod.
3. Electric furnace temperature control system using artificial intelligent control technology, with PID regulating, fuzzy control, self-tuning capability and can compile the procedure function, the control system the temperature display precision of 1℃, temperature stability± 5℃,1~20℃heating rate can be arbitrarily set.


MF1600 series box-type high-temperature furnace models and specifications:

Items

Unit

MF1600 series box-type high-temperature   oven

MF1600-30

MF1600-40

MF1600-50

Rated heating power

KW

9

16

26

Voltage/rate

V/Hz

220V/50-60Hz

380V/50-60Hz

380V/50-60Hz

Workroom size

mm

300*200*200

400*300*300

500*400*400

(depth*width*height)

Highest temperature

1600

Working temperature

1500

Empty furnace heating rate

min

≤20/min

Temperature uniformity

≤±5

Heating element


Silicon molybdenum rod

Temperature control fluctuations

±1

Temperature control mode


Intelligent   program fuzzy PID control
