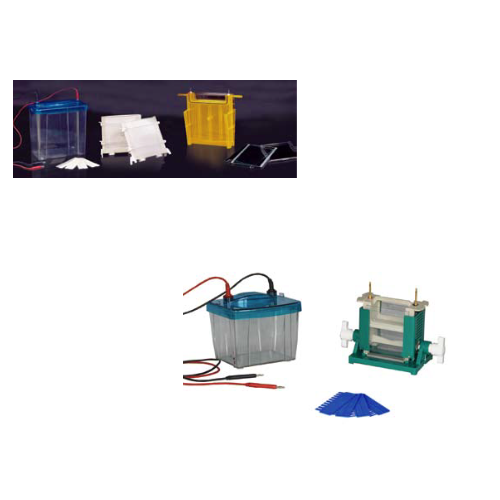

Double vertical electrophoresis cell (injection molding)

Product ID：DYCZ-24F, DYCZ-25D

Features	• Special wedge frame design can fix gel rooms firmly; • Molded buffer tank equipped the electrodes with pure platinum; • Gel casting device (1.0,1.5 mm) make it convenient to cast the gel; • Built-in heat exchanger can eliminate the heat produced during the running; • Run one gel or run two gels at the same time; • Special lid design avoids mistakes during the operation; • Power fails when you open the lid for user's safe; • High resolution of simple separation.	• Install rubber chamber in the electrophoresis apparatus main body directly, glue and running glue in the same place. • Can be placed different specifications of the gel on the electrophoresis apparatus main body. • Simple operation requirements and clamping installation design, high-end product simplification. • Casting mold with high strength PC material, which is solid durability. • Thermal design.
Specifications	• Gel dimensions (L X W): 200×175 (mm); • Combs: 16 well × 1.0mm, 167 μl volume; 16 well × 1.5mm, 251 μl volume; 21 well × 1.0mm, 132 μl volume; 16 well × 1.5mm, 198 μl volume; (Four kinds of combs for you to choose) • Runs up to 16 or 21 samples • Buffer volume: about 3,500ml; • Size (L×W×H): 300 × 160 × 300 (mm); • Weight: about 4.0 KG	• Gel dimensions (L X W): 83×73 (mm); 83×95 (mm) • Combs (Four kinds of combs for you to choose): 10 well × 1.0mm, 167 μl volume; 10 well × 1.5mm, 251 μl volume; 15 well × 1.0mm, 132 μl volume; 15 well × 1.5mm, 198 μl volume; • Buffer volume: about 1350ml; • Size (L×W×H): 175 × 163 × 165 (mm); • Weight: about 1.0 KG
Application	For SDS-PAGE, Native PAGE, and second dimension of two-dimensional gel electrophoresis, etc.	For SDS – PAGE, Protein Electrophoresis.
		Recommended Electrophoresis Power Supply DYY – 6C, DYY-10C, DYY – 12.
