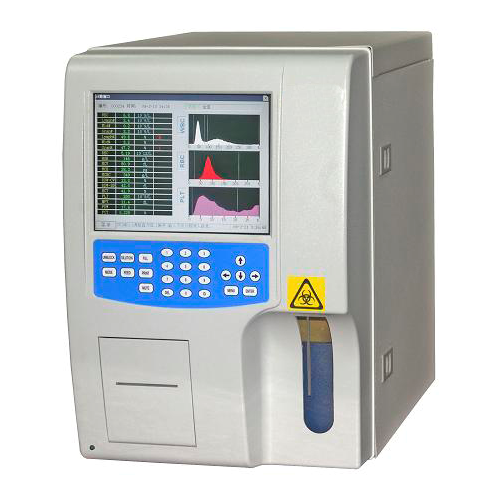

AUTO HEMATOLOGY ANALYZER

Features:

l  3-part differentiation of WBC: 19 parameters + 3 histograms

l  2 sample modes: whole blood and prediluted

l  Throughput: ≤2 minute per sample

l  Up to 35,000 sample results (including histograms) can be stored

l  Built-in thermal recorder, optional external printer

l  Auto reverse flush and high voltage burning, clog clearing

l  Liquid sensor

l  Color LCD display

l  22 parameters 3-part differ Auto Hematology Analyzer

Technical Specification

Parameters

WBC  Lymph#  Mid#  Gran#  Lymph% Mid% Gran% RBC HGB HCT MCV MCH MCHC RDW-CV RDW-SD PLT MPV PDW PCT and Histogram for WBC, RBC, PLT

Principle

Electrical resistance for counting and SFT method for HGB

Sample Volume

Prediluted blood         20µl

Whole blood:           9-20µl

Throughput

≤2 minutes per sample

Memory: 35,000 results

Performance:

Parameters          Precision CV%

WBC (10 /L)            2.0%

       RBC                 1.5%

       PLT                  4.0%

       MCV (fL)             0.5%

       HGB(g/L)             1.5%

Display

Large color LCD, displays all parameters result with histogram of WBC, RBC and PLT

Resolution: 800×600

Menu

Background test, Count, Sample mode, Review, Quality control, System setting, Reference value, System service, Calibration, Copyright, Shutdown

Alert

25 sets of alert message

Input/output

USB (keyboard, mouse, flash disk), RS232, parallel

Print

Graphic thermal printer with various printing format, optional external printer

Operating Environment

Temperature: 10-35℃

Humidity: ≤70%

Power Requirement

AC110-240V, 50/60Hz 2A

Dimension

273mm(L)×420mm(W)×415mm(H)

Weight

16Kg
