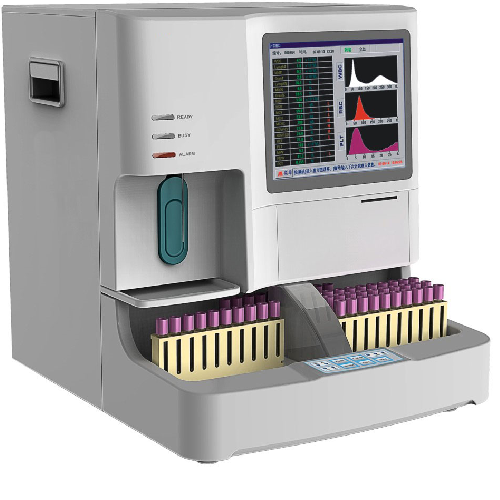

Auto Loader Hematology Analyzer

Features:

l  Throughput of 80 samples per hour without operator intervention

l  Fully auto Cap piercing sampler with 50 samples capacity allowing efficient testing

l  Combined with the Cap Piercing Sampler, the flexible Barcode Reader provides positive sample identification, optimizing laboratory efficiency

Technical Specification

Parameters

19 parameters + 3 histograms

Principle

Electrical impendence for counting and SFT method for HGB

Throughput: up to 80 samples per hour

Sampler capacity: 50 samples

Testing mode: manual open (whole blood, prediluted); sampler close (whole blood)

Sample Volume: Sampler mode: whole blood 200 µL

                Manual mode: whole blood 200µL; prediluted 40µL

Aperture Diameter

WBC: 100µm

RBC/PLT: 80µm

Memory: 35,000 results with histogram

Performance:

Parameters          Precision CV%

WBC (10 /L)            2.0%

       RBC                 1.5%

       PLT                  4.0%

       MCV (fL)              0.5%

       HGB(g/dL)            1.5%

Display

Large color LCD, displays all parameters result with histogram of WBC, RBC and PLT

Resolution: 800×600

Menu

Count, Sample mode, Review, Quality control, System setting, reference value, System service, Calibration, Copyright, Shutdown

Alert

25 sets of alert message

Input/output

USB (keyboard, mouse, flash disk), RS232, parallel

Print

Graphic thermal printer with various printing format, optional external printer

Operating Environment

Temperature: 18-30℃

Humidity: ≤70%

Power Requirement

AC100-240V, 60/50Hz

Dimension

600mm(L)×520mm(W)×570mm(H)

Weight

30Kg
