Gel Imaging & Analysis Systems

Features

•Dark chamber design; Dark lab is not necessary;

•Drawer-mode light boxes, convenient for use;

•A real-time preview, manual focus function

•Uv filter: EB special super multi-layer coating filter

•Compatible with many image formats: tif, jpg, bmp, gif

• Can be directly for glue cutting operation in dark lab.

Specifications

Dimension: (W x D X H): 456 x 435 x 570 (mm);

Reflect UV wavelength: 254nm and 365nm;

Transmission UV wavelength: 302 nm;

Ultraviolet light transmission area: 252 x 252 (mm);

Visible light transmission area: 280 x192 mm (white light plate);

Application

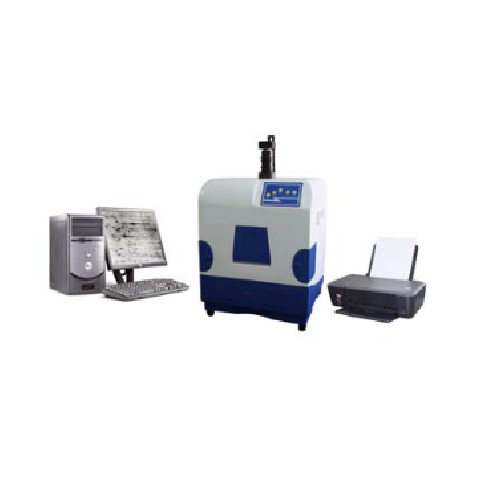

WD-9413B is fully automatic system, mainly used for observing, take photos and the test results of scientific analysis of nucleic acid and protein electrophoresis.

The system configuration

• High-performance black and white cameras;

• Import professional analysis software;

• High configuration computer;

• High resolution inkjet printer.

• semi-automatic

Technical indicators

• Effective pixels: 1.3 million pixels

• Lens: 6X optical zoom

• Camera dynamic range:62dB;

• Camera pixel size: 5.2μm(H)×5.2μm(V);

• Camera exposure time:1/100000~1/50 sec.;

• Professional analysis can be carried out to the result of 1 d, spot hybridization and colony count etc.

Powerful analysis software

1. The image processing function;

2. 1D analysis function;

3. Counting clone technology index;

4. Colony and spot hybridization;

5. Data results with MS Excel seamless connection;

6. Software can be used for Win98/Me/2000/Windows7
