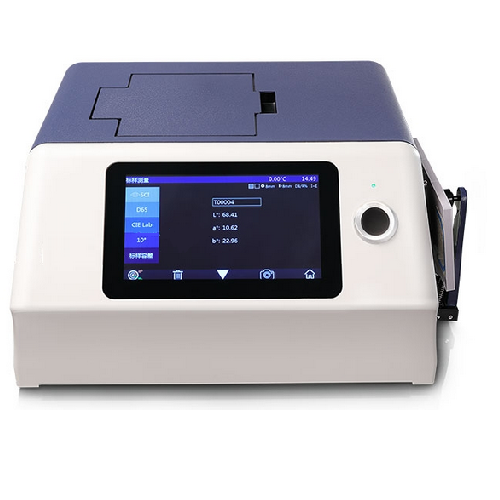

Benchtop Color Haze Meter

Product ID: YS6002

Brief Introduction:

YS6002 benchtop color haze meter is developed by Lab-kits independently with proprietary intellectual property. This machine adopts transmittance optical geometry d/0 (diffused illumination, 0-degree viewing angle) which confirms to CIE 15 standard. It can also realized the optical geometry 0/0 (parallel illumination, 0-degree viewing angle).

YS6002 color haze meter uses 360~780nm composite full spectrum LED light source (which is closed to the spectrum of D65), and it can realize intervals 10nm spectrum by precision concave grating and 256 Image Element CMOS Sensor. Accordance with industry-standard, YS6002 will give the accuracy result for the measurement of haze, transmittance, chromaticity, color difference, WI, YI, Pt-Co Index and Gardner index etc. It is wildly used in the field of glass processing, plastic processing, film manufacturing, display screen processing and packaging industry, liquid pharmaceutical analysis, laboratory etc.



Features:

a. High configuration for the handware: 7-inch capacitive touch screen; 25000 data storage; with USD / Bluetooth data port.

b. With high optical configuration and resolution, 154mm integrating sphere, concave grating, 256 Image Element CMOS Sensor, dual light path;

c. Adopt 360~780nm composite full spectrum LED light source (which is closed to the spectrum of D65), which is low power consumption and long-life time.

d. Easy realize the precision measurement for 3 kinds of light sources A, C and D65 for haze (ASTM D1003/1044), transmittance, Pt-Co Index and Gardner index.

e. Multiple measurement modes: quality control mode and sample mode to meet more customers’ requirement;

f. Independent light source detector and built-in temperature sensor will continuously monitor the change of light sources and environment to ensure the measurement more reliable.

g. Observer angle 2/10, multiple light sources, multiple color spaces, multiple chromaticity to meet different kinds of customers’ testing requirements.

h. Good man-machine interactive to ensure the measurement accuracy and stable;

i. More powerful extended functions at the PC software.



Specification:

Optical Geometry

Transmittance: d/0 (diffused illumination,   0-degree viewing angle);

similar to CIE15 standard 0/0(parallel   illumination, 0-degree viewing angle);

Confirms to the standard of ASTM   D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM   E308, DIN5033 Teil7

Application

wildly used in the field of glass processing,   plastic processing, film manufacturing, display screen processing and   packaging industry, liquid pharmaceutical analysis, laboratory etc.

Intergrating Sphere Size

Φ154mm

Light Source

360~780nm Combined LED Lamp

Spectral Separation Device

Concave-Grating

Detector

256 Image Element Double Array CMOS Image Sensor

Wavelength Range

360~780nm

Wavelength Pitch

10nm

Half Bandwidth

10nm

Reflectance Range

0~200%

Measurement Aperture

Transmittance: Φ25.4mm

Color Spaces

CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab,   βxy, DIN Lab99

Color Difference Formulas

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,   DINΔE99,ΔE(Hunter)

Other Colorimetric Data

Haze (ASTM D1003/1044), transmittance rate T,
  WI (ASTM E313, CIE/ISO, AATCC, Hunter),
  YI (ASTM D1925, ASTM 313),
  MI (Matamerism Index ),
  Color Strength, Staining fastness, Color Strength, Opacity,

Pt-Co index and Gardner index

Observer Angle

2°/10°

Illuminant

D65, A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12

Display Data

Spectral/Values, Chromaticity Values, Color   Difference Values/Graph, Color Diagram, Color Simulation, Pass/ Fall   Result, Color Offset

Measurement Time

About 1.5s

Repeatability

Spectral transmittance: for test transmission   reference white within ΔE*ab 0.05% (400~700nm: within 0.04%);
  Chromaticity Data: Φ25.4mm, within ΔE*ab 0.03 (after do warm-up and   calibration, it is the average value to measure transmission reference white   plate for 30 times at 5 second intervals)

Inter-instrument Agreement

Φ25.4mm, within ΔE*ab 0.15 (average value   for 5 pcs standard transmittance color plates measurement)

Size

370X300X200mm(L*W*H)

Weight

About 9.6kg

Power

DC 24V,3A Power Adapter

Illuminant Life Span

5 years, more than 3,000,000 times measurement

Screen

7-inch TFT Capacity Touch Screen Display

Interface

USB, Printing Port

Storage

Standard:5000; Sample:20000

Language

English

Working Temperature

0~40(32~104°F)

Storage Temperature

-20~50(-4~122°F)

Standard Accessory

Power Adapter, User Manual, QC software (please   download from website), USB cable, reflectance white and black board, transmittance   black board, 25.4mm aperture, transmissive test component

Optional Accessory

Miniature- printer

Note

The specifications are subject to change without   notice.
