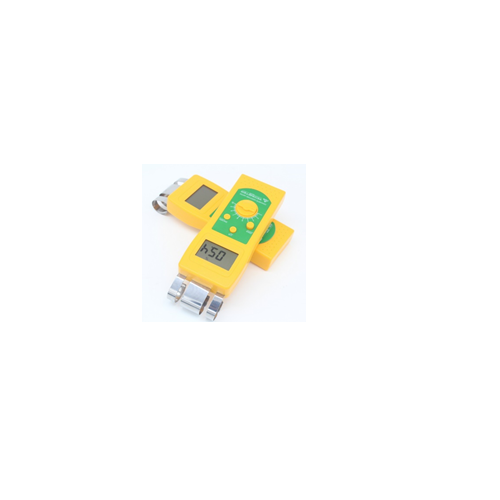

Concrete Moisture Meter

Product ID: VM-C

Introduction

Concrete Moisture Meter adopted the high frequency principle based on the introduction of the most advanced technology from US. In other words, there is a fixed frequency inside the equipment. Once the moisture of the detected objects carried, the frequency through the sensor will be different. The deference between the frequencies will be displayed in figure after the conversion by current-frequency converter.



Features

1.VM-C Concrete Moisture Meter, adopted the high-frequency principle, LCD back light digital display, the sensor and the host all in one.

2.VM-C Concrete Moisture Meter, easy Operation and no need use training, when measures the textile materials only gently press the instrument sensor above it.

3.Short test time, high efficiency and undamaged.

4.VM-C Concrete Moisture Meter, small size, light weight, portable on-site rapid testing, VM-P is a good helper for testing personnel to detect the moisture content on-site.



Specifications

Model

VM-C

Moisture   Range

0.1%-50.0%

Ambient   temperature

-5°C-60°C

Humidity

5%-90%

Working   Principle

High-frequency   electromagnetic induction

Scan Thickness

50mm

Accuracy

± 0.5%

Resolution

0.1

Response time

1s

Power

9V battery   (6F22)

Screen

Backlit   Digital LCD Screen

Gear Table

1~10

Dimensions

200mm×65mm×27mmMax Volume

Net Weight

200g
