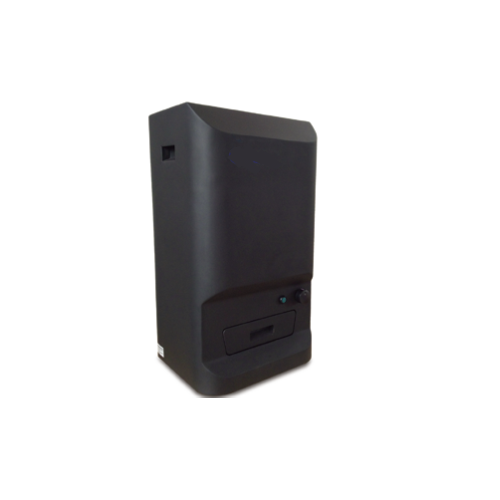

Automatic chemiluminescence imaging system

Product ID:WD-9423B, WD-9423C

Features

Novel appearance, miniaturization design; As a whole is concise and easy to use.

Open the door to accord with human engineering design, personalized drawer slide table, easy to operate, practical.

Corrosion resistant metal camera obscura, anti-static, anti-interference design.

A key imaging software, easy to shoot, simple operation.

Imported optical lens, millions of hd. low illumination, professional industrial CCD.

Fully-automatic integrated design, professional refrigeration module, refrigeration temperature can reach to -60.



Parameters

Model

WD-9423B

WD-9423C

Resolution

140 million

420 million

Refrigeration temp.

-60

-60

Focal length

Fixed

Fixed

Camera lenses

F0.95 2/3'

F0.95 1'

Pixel

6.45*6.45um

7.4*7.4um

Pixel combination

1*1/2*2/4*4

1*1/2*2/4*4

White lighting

White 12v(adjustable)

LED (adjustable)



Software function

Automatic: a key to complete all functions, automatic calculation of time taking pictures.

High precision automatic exposure, a key to finish the western image of the shooting, do not need to estimate the time of exposure and imaging.

Data table can save the Excel format, all images can copy, paste and print, can be guided into office, WPS and other offices software for editing.

Detection of luminous substrate in western Lighting, ECL/ECL plus, CDP-Star, SuperSignal, CSPD, Lumi-GLO etc.
