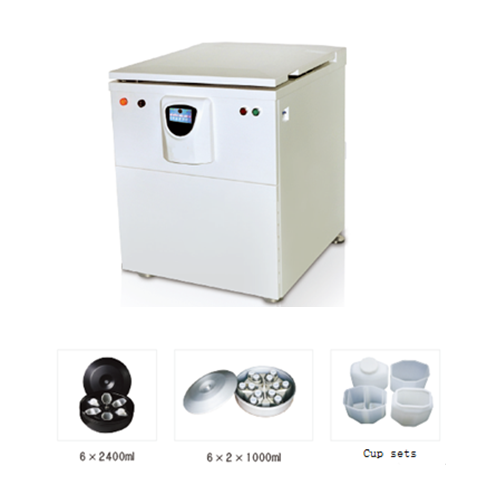

Super-Capacity Refrigerated centrifuge

Features

1.         AV motor of variable frequency and high toque, free from contamination caused by carbon dust, which helps to prolong the service life.

2.         Imported variable frequency drive system and automatic control system to ensure steady and reliable operation.

3.         With the capacity 6×2400ml or able to separate 18 bags of 400ml whole blood at a time.

4.         Intelligent interface featured by a TFT true-color LCD wide-screen touch monitor, micro-computer control and simultaneous indication of both the set parameters and operation one.

5.         With 16 operation programs to be set by the user and the control parameters of the rotor to be modified at any time.

6.         Operations can be programmed, 10 levels of speed-up and speed-down time limits for the user to choose freely.

7.         Can indicate the ascending and declining curves of the rotor, the centrifugal integral curves and the temperature curves.

Technical parameters

Model: LRM-12L

Max Capacity: 6×2400ml, 6×3×400ml (blood bag)

Max Speed(r/min):4600 r/min

Max RCF(×g): 7060×g

Speed precision: ±50r/min

Control and drive system: Frequency motor，micro control，direct driver

Compressor: Import fluoride-free compressor and control valve (R404a)

Operation programe: 16

Temp. control range: -20℃～+40℃

Temp. precision: ±1℃

Timer range: 0-99h59min

Total power: 6KW

Power: AC220V 50Hz

Noise: ＜68dB(A)

Dimension (L×W×H) :860×960×1200mm

Weight :450kg

Rotor parameters
