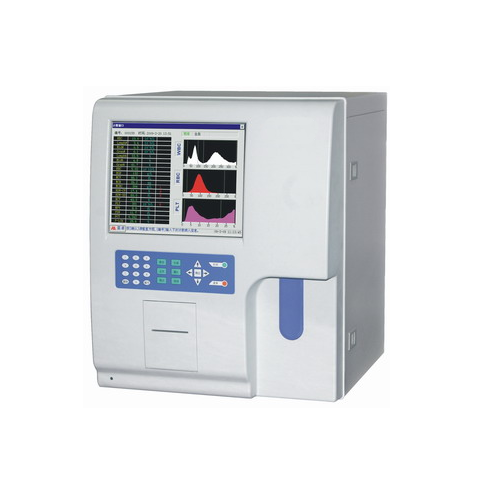

AUTO HEMATOLOGY ANALYZER

Features:

l  Fully automated, compact, flexible and low cost

l  3-part differentiation of WBC: 19 parameters + 3 histograms

l  2 sample modes: whole blood and prediluted

l  Throughput: 60 samples per hour

l  Automatic diluting, lying, mixing, rinsing and clog-clearing

l  Automatic sample probe cleaning

l  Up to 35,000 sample results (including histograms) can be stored

l  Built-in thermal recorder, optional external printer

l  Reagent expired alarm

l  Color LCD display

l  22 parameters 3-part differ Auto Hematology Analyzer

Parameters

WBC  Lymph#  Mid#  Gran#  Lymph% Mid% Gran% RBC HGB HCT MCV MCH MCHC RDW-CV RDW-SD PLT MPV PDW PCT and Histogram for WBC, RBC, PLT

Principle

Electrical resistance for counting and SFT method for HGB

Sample Volume

Prediluted:             20µl

Whole blood:           9-20µl(option)

Aperture Diameter

WBC: 100µm

RBC/PLT: 80µm

Throughput

Over 60 samples per hour

Memory: 35,000 results

Performance:

Parameters          Precision CV%

WBC(10 /L)            2.0%

       RBC                 1.5%

       PLT                  4.0%

       MCV(fL)             0.5%

       HGB(g/dL)            1.5%

Display

Large color LCD, displays all parameters result with histogram of WBC, RBC and PLT

Resolution: 800×600

Menu

Count, Sample mode, Review, Quality control, System setting, Reference value, System service, Calibration, Copyright, Shutdown

Alert

25 sets of alert message

Input/output

USB (keyboard, mouse, flash disk), RS232, parallel

Print

Graphic thermal printer with various printing format, optional external printer

Operating Environment

Temperature: 10-35℃

Humidity: ≤70%

Power Requirement

AC110-240V, 60/50Hz, 2A

Dimension

400mm(L)×400mm(W)×460mm(H)

Weight

25Kg
