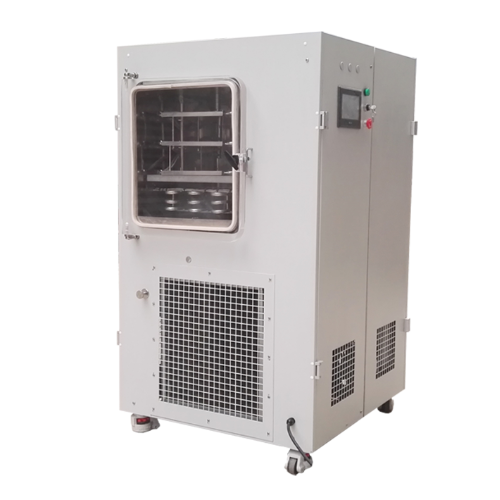

Pilot type freeze dryer

Product ID:TF-SFD Series

Features

l  In-situ pre-freeze drying;

l  Silicone oil heating, high temperature control accuracy, shelf temperature difference ≤ 1 ° C, drying effect is uniform;

l  Shelf temperature adjustable, controllable production process;

l  It can store 14 programs; each program can be set to 30 segments. The freeze dryer can modify the program parameters during the operation and record the final drying curve.

l  Because the drying chamber and the cold trap are separated structures, the water capture ability is strong and the drying time is short;

l  Touch screen, PID control, can set the power-on password, display the drying curve;

l  The square tray is not easy to be deformed, easy to operate and easy to clean;

l  The inflation valve is configured to be filled with an inert gas;

l  The drying chamber adopts a high light transmissive colorless transparent plexiglass door, which can clearly observe the change process of the material during the operation;

l  Optional PLC control system and PC software for remote control.



Technical parameter

Model

TF-SFD-2

TF-SFD-2

(Top-press)

TF-SFD-3

TF-SFD-3

(Top-press)

TF-SFD-5

TF-SFD-5

(Top-press)

Partition board effective area

0.2

0.12

0.3

0.31

0.52

0.51

Cold trap icing ability

3kg

5kg

850*1000*1700mm

850*1000*1700mm

Minimum temperature

-70

Freeze dry box ultimate vacuum

5pa

Bottling capacity (approx.)

OD 16mm 770pcs

OD 16mm 858pcs

OD 16mm 1200pcs

OD 16mm 1287pcs

OD 16mm 1914pcs

OD 16mm 2112pcs

OD 22mm 400pcs

OD 22mm 432pcs

OD 22mm 600pcs

OD 22mm 648pcs

OD 22mm 1008pcs

OD 22mm 1056pcs

Maximum liquid volume

3L

4L

8L

Layers   of partition board

2(Available)+1(Radiation board)

3(Available)+1(Radiation board)

4(Available)+1(Radiation board)

Size of partition board

280mm(width)*360mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

278mm(width)*380mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

300mm(width)*380mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

278mm(width)*380mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

360mm(width)*480mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

278mm(width)*460mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

Partition   board interval

70mm

Temperature uniformity

±1

Voltage

220VAC 50HZ

220VAC or 380VAC 50HZ

Installed power

3KW (Actual power consumption <3kw)

3.5KW (Actual power consumption <3.5kw)

4.5KW (Actual power consumption <4.5kw)

Machine structure

Vacuum pump external

Freeze dryer size

800*1000*1700mm

800*1600*1700mm

800*1000*1700mm

800*1650*1800mm

850*1000*1700mm

800*1650*1900mm

Weight (approx.)

300kg

400kg

430kg

450kg

450kg

500kg



Model

TF-SFD-10

TF-SFD-10(Top-press)

TF-SFD-15

TF-SFD-15

(Top-press)

TF-SFD-20

TF-SFD-20

(Top-press)

Partition   board effective area

1.04

1

1.51

1.5

2.16

2

Cold trap icing ability

16kg

16KG



24kg

24kg

30kg

30kg

Minimum temperature

-70

Freeze dry box ultimate vacuum

5pa

Bottling capacity (approx.)

OD 16mm   3828pcs

OD 16mm   3828pcs

OD 16mm   5772pcs

OD   16mm 5772pcs

OD 16mm   7656pcs

OD 16mm   7656pcs

OD 22mm   2016pcs

OD 22mm   2016pcs

OD 22mm   3078pcs

OD 22mm   3078pcs

OD   22mm 4032pcs

OD 22mm   4032pcs

Maximum liquid volume

16L

24L

30L

Layers   of partition board

6(Available)+1(Radiation board)

Size of partition board

360mm(width)*480mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

360mm(width)*480mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

420mm(width)*600mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

420mm(width)*600mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

450mm(width)*800mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

450mm(width)*800mm(depth)

Layers and size of partition board can be adjusted according   to customer requirements

Partition   board interval

70mm

Temperature uniformity

±1

Voltage

380VAC 50HZ

Installed power

8KW (Actual power consumption <8kw)

11KW (Actual power consumption <11kw)

15KW (Actual power consumption <15kw)

Machine structure

Vacuum pump external

Freeze dryer size

1250*1100*1800mm

1250*1750*1800mm

1350*1250*1800mm

1350*1950*1950mm

1750*1500*1850mm

1750*2100*2050mm

Weight (approx.)

800kg

850kg

1000kg

1100kg

1200kg

1300kg
