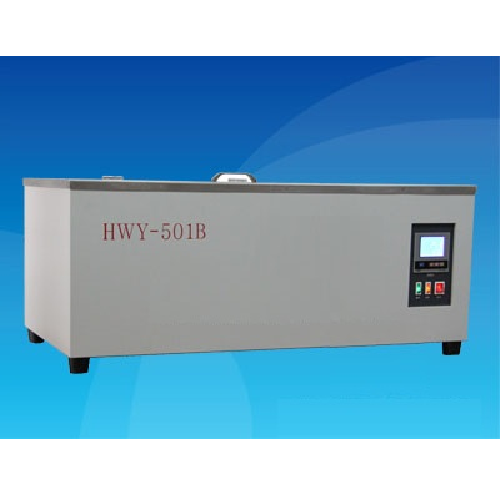

Constant temperature water bath

Constant temperature water bath is a standard constant temperature water bath specially designed and manufactured for related factories, enterprises, construction units, research institutes, universities and colleges. The temperature control range of this instrument is (room temperature +5) ℃ ~ 70 ℃, using liquid crystal display high-precision temperature controller, has the advantages of convenient operation, low noise, high temperature control accuracy.

   This instrument is suitable for the industry standard of the People’s Republic of China JTG E20-2011 "Highway Engineering Asphalt and Asphalt Mixture Test Regulations" and the relevant road asphalt mixture test standards of the People’s Republic of China. Indispensable instruments for the use, testing and testing units of asphalt mixtures, as well as relevant scientific research institutes, universities and colleges laboratories.

Technical characteristics

1. The stainless steel water tank is used, which has strong anti-corrosion ability; the water tank has a large capacity and is suitable for heat preservation of various asphalt mixture tests.

2. Using high-precision, LCD temperature controller, the temperature control accuracy can reach 0.1 ℃.

3. The circulation pump is used as the bath liquid circulation of the constant temperature water bath, the circulation is sufficient, and the temperature in the bath is uniform.

4. Reasonable design and simple operation. It is an indispensable instrument for the use, testing and testing units of various asphalt mixtures, as well as relevant scientific research institutes, universities and colleges laboratories.

Technical parameters and indicators

1. Water bath capacity: 90L, 710㎜×420㎜×310㎜ (length×width×height).

2. Temperature control range: (room temperature +5)℃～70℃.

3. Temperature control accuracy: ±0.1℃.

4. Heating device: electric heater, power 2400W.

5. Power consumption of the whole machine: no more than 2500W.

6. Water bath circulation: the magnetic circulation pump automatically circulates.

7. Power supply: AC (220±10%) V, 50Hz.
