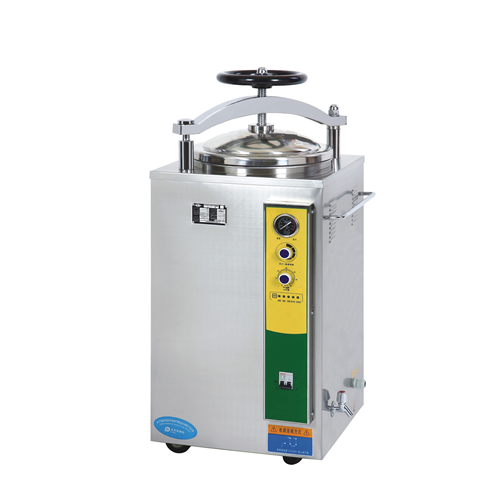

ELECTRIC-HEATED VERTICAL STEAM STERILIZE(hand round automatic)

Product ID:VAC-LS-35HJ/50HJ/75HJ/100HJ

Characteristics:

1.Fully stainless-steel structure

2.Hand wheel type of quick-open door structure

3.Pressure safety lock

4.Indicator light indicates working state

5.Over temperature & over pressure auto-protection

6.Double scale indication pressure gauge

7.Self inflating type seal

8.Safe protection of water lacking

9.Automatically shut off with beep reminding after sterilization

10.Easy to operatesafe and reliable

11.With two stainless steel sterilizing baskets



Technical Data:

Model

technical   data

VAC-LS-35HJ

VAC-LS-50HJ

VAC-LS-75HJ

VAC-LS-100HJ

Chamber volume

35L(φ318×450) mm

50L(φ340×550) mm

75L(φ400×600) mm

100L(φ440×650) mm

 working pressure

0.22MPa

Working   temperature

134

Max   working pressure

0.23 Mpa

Heat   average

≤±1

Timer

060min

Adjustment   of temperature

105134

Power

2.5Kw/AC220V.50Hz

3Kw /AC220V.50Hz

4.5KW /AC220V.50Hz

Overall   dimension

450×450×1010(mm)

510×470×1130(mm)

560×560×1120(mm)

540×560×1250(mm)

Transport   dimension

570×550×1150(mm)

590×590×1280(mm)

650×630×1280(mm)

680×630×1370(mm)

G.W/N.W

72Kg/ 56Kg

88Kg/ 68Kg

100Kg/80Kg

110 Kg/85Kg
