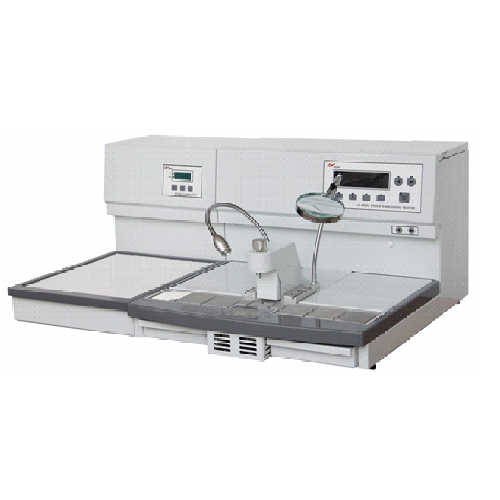

Tissue Embedding & Cooling System

Product ID:SF-BMⅣ & BLⅣ

Features:
OLED screen: energy-saving, crisp display without the necessity of background light, clear vision without blind spots from any angle;
Flexible heating mechanism and PID technology are used to achieve fast heating and precise temperature control;
Seven working areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, heating plate (working plate), small Cooling Plate, and Cryo Module are individually controlled and work independently without interference by each other;
Adjustable gravity-feed paraffin dispenser using latest heating and DC low-voltage control mechanism: dispenser is heated with wrapping-type heating film to achieve smooth, safe and reliable heating;
Trimming plates at both sides for convenient tissue block trimming;
A big magnifying glass can be adjusted at any direction and angle, suitable for embedding extremely small tissue specimens;
Manual and automated operation modes: under a manual mode, the system can be started and stopped any time; under an automated mode, ON/OFF can be set at any weekday, hour and minute; all settings are automatically stored once the program starts to run;
All buttons are equipped with luminotron to clearly show the working status;
Low-voltage, safe and bright LED lamp: both angle and brightness are adjustable, enabling easy and convenient specimen observation;
Flexible module configuration options (left-to-right or right-to-left) through a design separating Cryo Module from Embedding Module; Cryo Module can be automatically started or stopped along with Embedding Module by optionally using a power serial port;
Freezing temperature can be adjusted due to the use of a new-type inverter compressor;
There is an automatic actuation, can make sure the unit will continue working after a power-down.

Technical Specifications:
For SF-BMIV Embedding center:
Paraffin Chamber Capacity:  ≥6 liters
Temperature Ranges: RT - 85℃:
Temperature Control Precision: ±1%
Paraffin Flow Control: Paraffin flow control via finger touch plate and optional foot pedal
Fully programmable ON/OFF control allows automatic system start and stop anytime weekly
Dimensions of Paraffin Chamber (BMIV): 495×132×95mm(W x D x H)
Dimensions of Thermal Chamber (each of two) : 240×160×50 mm(W x D x H)
Working area of Embedding Module: 540mm×93mm
Dimensions of small cold plate: 60×50mm
Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 1000W (SF-BMⅣ)
Dimensions: 675×575×390mm(W x D x H) (SF-BMⅣ)
Net weight: 39kg (SF-BMⅣ)

For SF-BLIV Cooling system:
Temperature Ranges of Cryo Module: 0 to -20℃
Temperature setting of Cryo Module: the optimal working temperature is approximately -10℃, and the temperature is under delay protection
Dimensions of Cryo Module: 315×380 mm
Working Voltage: AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power: 300W (SF-BLⅣ)
Dimensions: 710×350×390mm (W×D×H) (SF-BLⅣ)
Net weight: 25kg (SF-BLⅣ)
