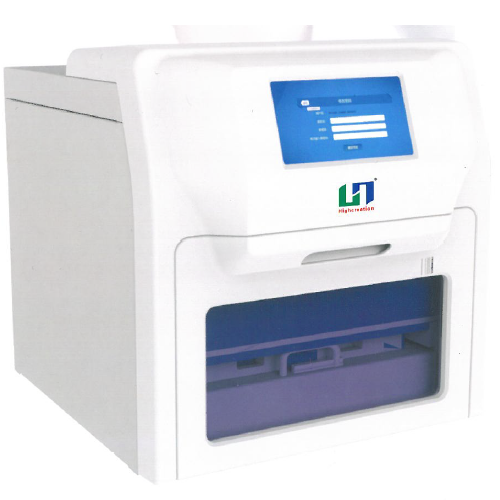

Automatic NE 40 nucleic acid extraction instruments

Features:

With a unique heating system, it can heat up to 60C in 30 seconds and rise to 90C in 1 minute

Minimize sample processing latency and much efficient

Unique reagent slot extract volume to 20ul, enhance the extraction performance with high concentration

Avoid cross contamination by airosol with Low speed mix system

Unique wide-cabinet chamber design eliminates cross contamination

UV lamp disinfection to effectively prevent

Technique specification

Samples quantity: 1-48 samples

Samples volume: 20-1000ul

Samples types: whole blood, serum, plasma, puncture fluid, thoat swab, genital

Extraction method: automatic magnetic bead

Magnetic recycle rate: ＞95%

Magnetic steel bar: 48

Extraction sensitive: positive rate 95% 10IU/ml

CV of well: CV＜5%

Pyrolysis temperature: 25-90℃

Eluting temperature: 25-90℃

Operation interface: 7inch high resolution touch screen

Internal software: 16 model (stored more than 100 software)

Software management: can be stored and customized

Extension port: RS232

Sterization: UV light internal

Venting: Fans

Power: AC110-220V,50/60Hz

Dimension: 490*467*453mm
