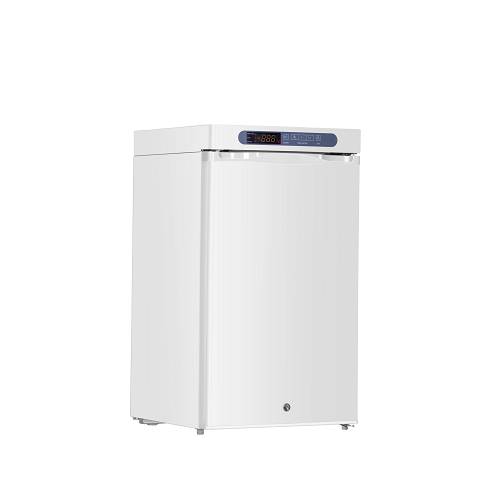

Product ID: MDF-25V100
Integrated design of cold shelf and evaporator provides additional refrigeration efficiency.
This products designed to store vaccines blood plasma, and many other biological materials, Installations can be found in researching institution and clinical sites in life science, electronic testing and medical markets.
Features
l High density foam insulation for rigidity and stable storage temperature.Microprocessor control, digital display adjustable temperature rage: -10℃--25℃.
l LED digital display for clear observation.
l Wide voltage tolerance design with applicable voltage range of187~242 V/AC.
Safety
l Multiple malfunction alarms including high and low temperature , sensor error
l Two types of alarm indications: audible buzzing and visible flashing light.
l Door lock for storage safety
Humanized design
l Upright side door with limit door hinge to prevent collision when door open .
l Controller password protect function to avoid change running parameter randomly.
Certificate:
l ISO14001.ISO9001.ISO13485.ISO45001.,FDA List
Warranty:
l 1 year free spare parts and remote technical support.
Special:
Mini cabinet, easy to move.
Lockable design prevents unauthorized access.
Performance | Refrigeration System | |||
Temperature Range | -10℃~-25°C | Compressor/Brand | 1/China Brand | |
Ambient Temperature | +10~+32°C | Refrigerant | R600a | |
Controller | Microprocessor | Cooling Type | Direct cooling | |
Display | Digital Display | Defrost Type | Manual |
Electrical Data | Dimensions | |||
Power Supply(V/Hz) | 220~240V/50~60;115/60 | Capacity | 100L | |
Rated Power(W) | 150 | Interior Size(W*D*H) | 410X410X670mm | |
Electrical Current(A) | 0.9 | Exterior Size(W*D*H) | 540*540*880mm | |
Power Consumption | 2.2 kWh/24h | Package Size(W*D*H) | 590*590*900mm | |
Power failure alarm | 8H | N.t./G.t.(approx) | 40/43kg | |
Loading Qty(20'/40'/40'H) | 54/120/120 |
Alarm | Accessories | |||
High/Low Temperature | Y | Caster | / | |
Sensor Error | Y | Remote alarm port | / | |
Power Failure | Y | Inner Door | / | |
Door ajar | Y | Drawers | 4 | |
Thermostat failure | Y | Test hole | / | |
Condenser clean | / | Data logger | Optional |
