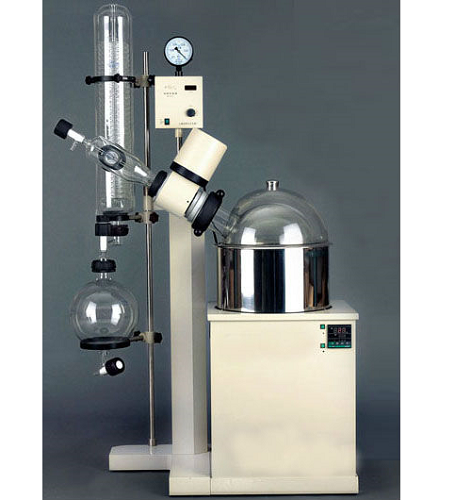

Rotary Evaporator

Rotary Evaporator
RE-5210A

Detailed introduction:



Application:

Using a rotary evaporator flask, increasing the evaporation area, is placed in a water bath under reduced pressure, make the solution diffuse and evaporate. It is the ideal equipment in the chemical industry, pharmaceutical industry, food, environmental protection, universities and research laboratories and other units for the analysis of experiments which concentrated, dried and recycling, particularly appropriate for small batch production units.



Features:

Host machine fixed on aluminum square columns connected T-shaped base.  Left: long efficient dual reflux condenser pipe, valve type feeding tube, valve type collection bottle to achieve rapid condensation, continuously and fluid, rapidly discharge, positioned by stainless steel cylinder and pole. Easy assembly and disassembly, stable and secure. Right: Lifting type constant temperature water bath pot, electric lifting.



Technical parameters:

Rotary bottle: Capacity 10L (10 liters), large diameter flange mouth 75MM

Collection bottle: Capacity 5L (5 liters)

Host machine speed: Frequency Control (imported converter), fast digital display,20-138 rev / min

Rotary motors: three-phase AC induction motor, 220V single-phase power supply 120W

Condenser pipe: vertical, long and efficient dual reflux condenser pipe

Water bath pot: once formed stainless steel water bath pot

Thermostat: Touch intelligent digital display, accurate temperature setting

Power supply voltage: -220V/50HZ, heating power: 3000W

Instrument Size: 95 * 55 * 165CM



Standard configuration out of factory: Collection bottle (feeding type) 5 L, 10 L rotating bottle
