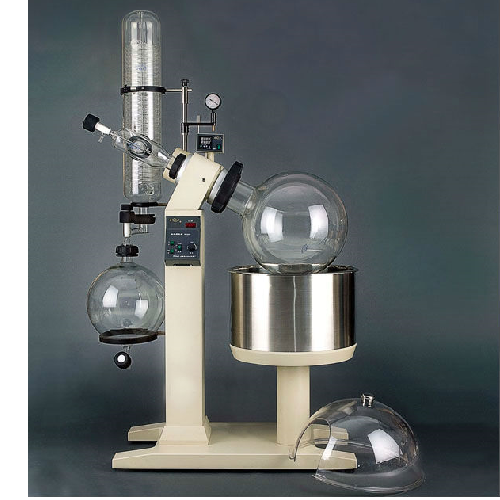

Rotary Evaporator

Rotary Evaporator
RE-5220

Detailed introduction:

Operation pressure

Decompression

Structural style

Vertical

Appearance

Spiral   tube

Moving condition

Internal circulation



Application:

New floor type rotary evaporator using a large volume, large caliber rotary evaporator flask, increasing the evaporation area, is placed in a water bath under reduced pressure, rotating while heating, make the solution in the bottle diffuse and evaporate. Widely used in large-scale sample concentration, drying, extraction, recovery, etc. It is the ideal equipment in the chemical industry, pharmaceutical industry, food, environmental protection, universities and other research experiments and industrial mass production.



Main technical parameters:

·Rotary Bottle: Capacity 20L (20 liters) flange diameter ¢ 125mm

· Host machine speed: Digital Display 10-120 rev / min

· Heating pot: one-off stamping-shaped stainless steel water bath pot

· Temperature Control: digital display water temperature Precise temperature setting range: 0 degrees -99 degrees

· Instrument Size: 850mm × 520mm × 1600mm (L × W × H cm)

· Collection bottle: Capacity 10L (10 liters)

· Rotary motor: three-phase AC induction motor 220V single phase power supply 125W

· Power supply voltage: -220V/50HZ  power 5 kilowatts

· Lifting route: 0-190mm

· Condenser pipe: vertical, efficient three reflux condenser pipe



Features:

Host part: the introduction of advanced transmission system, reasonable structure, durable, and practical.

Control, temperature parts: the introduction of advanced frequency control system, temperature control system to ensure accurate performance of the instrument.

Water bath pot: made of advanced stainless steel plate one-off stamping-shaped, automatic vertical lift.

Sealing components: selection of the latest PTFE material, with a special processing technology to enhance sealing, corrosion resistance and abrasion resistance.

The main structure: high quality aluminum alloy and stainless steel material, more complete and improve the reasonable performance of the instrument.



Standard configuration out of factory: Collection bottle (feeding type) 10 L, 20 L rotating bottle
