Portable Conductivity/ TDS/Sal./Res.Meter

Portable Conductivity/ TDS/Sal./Res.Meter
Model: ELE-713

Introduction:

Built-in microprocessor chips, intelligent functions such as automatic calibration, automatic temperature compensation, data storage, function set-up, automatic power-off and low voltage display.
Automatic identification of 8 conductivity standard calibration solutions, two options of standard calibration solutions: Europe and America series and China series.
Adopt advanced conductivity measurement technology, use conductivity electrode of constant K=1, only need one-point calibration and meet the measurement precision requirement of 0.5μS/cm ~ 200 mS/cm.
Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
Conductivity measurement mode has the function of non-linear temperature compensation for high purity water.
Plastic conductivity electrode with automatic temperature compensation, fast response and accurate result.
Meter meets IP57 rating, equipped with calibration solution and portable case.

Specifications:

Category	Product Name	Basic features and specifications
Conductivity	Measuring range	Conductivity:(0.00~19.99) μS/cm (20.0~199.9) μS/cm (200~1999) μS/cm (2.00~19.99) mS/cm (20.0~199.9) mS/cm TDS: (0 ~ 100) g/L Salinity: (0 ~ 100) ppt Resistivity:(0 ~ 100) MΩ·cm
	Resolution	0.01/0.1/1μS/cm 0.01/0.1 mS/cm
	Accuracy	Meter: ±1.0% FS, Overall: ±1.5% FS
	Temp. compensation range	(0 ~ 50) °C(manual)
	Electrode constant	0.1 / 1 / 10 cm^-1
	Benchmark temperature	25°C, 20°C and 18°C
Other Technical Parameters	Data storage	200 groups
	Storage content	Series number, measuring value measuring unit and temperature,
	Power	Two AA batteries (1.5V x2)
	Size and weight	meter:(65×120×31)mm/180g；Suitcase: (360×270×76) mm/1.6Kg
	Quality and safety certification	ISO9001:2000, CE and CMC
Working Condition	Environment temperature	5 ~ 35 °C(0.01grade)
	Environmental humidity	≤85%
	IP rating	IP57 Dustproof and waterproof

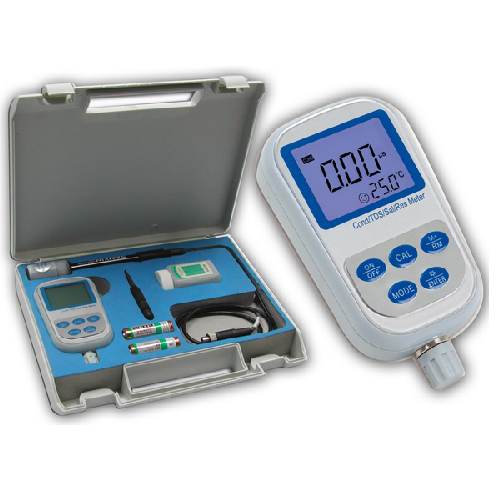

Standard kits:

1. Model ELE-713 Conductivity/TDS/Salinity/Resistivity meter	1unit
2. 2301T-S plastic conductivity electrode	1pc
3. 1413μS/cm conductivity standard solution (50mL)	1btl
4.Screw driver	1pc
5. Spare AA batteries	2pcs
6. Operation manual	1pc
7. Carrying case	1unit
