LCD Electronic Tensile Testing Machine

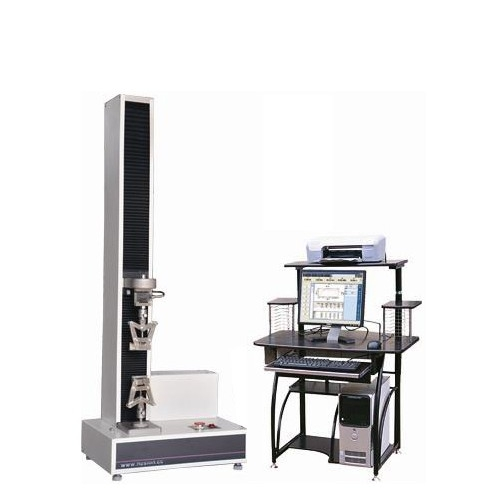

ET-WDL Series LCD Electronic Tensile Testing Machine

Main Purpose:

ET-WDWSeries Electronic Tensile Testing Machine is widely used in the test of tension property index in the lines of rubber, plastic, spin, waterproof material, wire cable, tinsel, metal stick, metal sheet, add enclosure can do compression and bending testing. It has many functions, such as digital display test force, test speed continue readjust, when the specimen snap can automatic stopping, keep force value.



Function and Characteristic:

1) It adopts electric to load high-precision motor and driver, to drive silk-bar. Cross we self-determination design framework of shift gears, realize adjust of the testing speed, at the testing process low-noise, placidity and high-efficiency.

2)Touch-key to operate, Computer display in real time, convenient and shortcut.

3) It can regulate the lifting speed of beam when the specimen is clamped and operates flexibly and can switch arbitrarily.

4) It can match computer, and can control testing process, also save and print test data.



Main Technical Parameters:


ET-WDW-0.1

ET-WDW-0.2

ET-WDW-0.5

ET-WDW-1

ET-WDW-2.5

ET-WDW-5

Max.Test force

100N

200N

500N

1KN

2.5KN

5KN

Scope of Scale

Max. Test force of 2%~100%

Veracity of test force

Precede indicating value of±1%

Beam displacement scale

The resolution is 0.01mm

Veracity of distortion

Range of extensometer of full   measuring span2%~100%

Scope of timing

1—500mm

Max. travel of beam

700mm(Max. up to 1200mm)

Main frame

Single-arm-frame

Size of frame

600*400*1600mm

Weight

200kg
