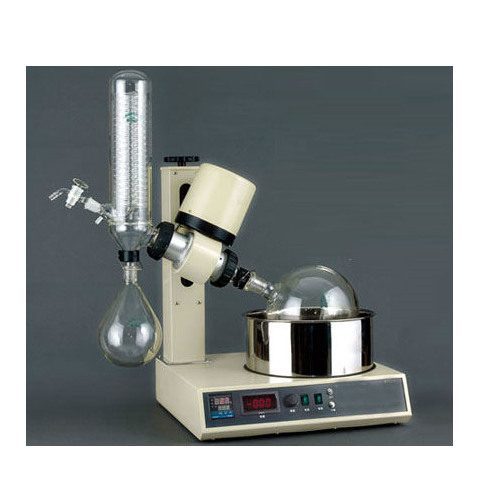

Rotary Evaporator

Rotary Evaporator
RE-5298A

Application:

Rotary evaporator using a rotary evaporator flask (flask), increasing the evaporation area, is placed in a water bath under reduced pressure, a device rotating while heating, make the solution in the bottle diffuse and evaporate. It is a basic equipment in the chemical industry, pharmaceutical industry, universities and research laboratories and other units for the manufacture and analysis of experiments which concentrated, dried and recycling.



Technical parameters:

Host machine: Electronic variable speed 0-100 r / min, speed digital display, hand wheel trim

Lift: 0-150 mm automatic lifting up and down

Cooler: large aperture evaporation tube, double reflux integrated standard port condensing, with valve type feeding tube, tetrafluoroethylene tube sockets, accelerate the evaporation rate

Heating pot: Stainless steel water bath pot, with water inlet and outlet faucet

Temperature: embedded sensors, digital display automatic control room temperature -99 degrees

Power: 1000W

Voltage: -220V/50HZ

Features:

The metal parts are made of corrosion-resistant high-quality stainless steel, long life



Out of factory standard configuration: one 1 L collection (tomato form) bottle, rotary bottle 1 L/3 L each one.
