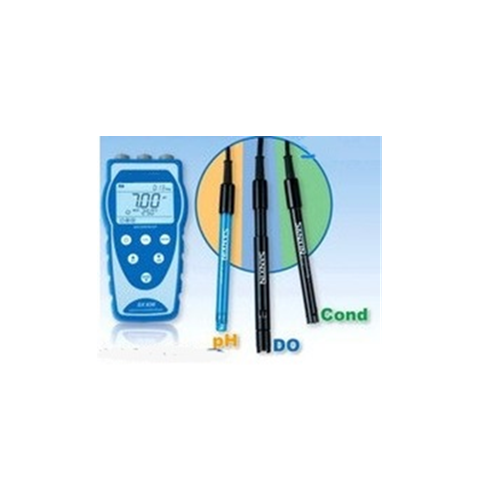

Portable pH/DO meter
Portable pH/DO meter
Model ID: ELE-825
Features
◆ Double-parameter meter, equipped with pH electrode and conductivity electrode, automatic identification of electrode by meter.
◆ The meter is able to recognize up to 12 types of pH standard buffer solutions. There are three options of standard buffer solutions: USA series, NIST series and Chinese series (CH), there is also customer-defined solution calibration.
◆ The meter provides two special modes for pure water and pure water mixed with ammonia. These special modes offer temperature compensation for pH value, especially suitable for the electricity and petrochemical industries.
◆ DO electrode offers a built-in temperature and salinity sensor with automatic temperature compensation and automatic salinity compensation as well as manual barometric pressure compensation. The measurement is more accurate
◆ Polarographic DO electrode with special DO calibration cover, electrode polarization only requires 3-5 min, three combined membranes convenient to renew.
◆ Equipped with calibration solution and portable case and suited in field and on site.
◆ Meter meets IP57 rating.
Specifications
pH | Range | (-2.00 ~ 19.99) pH |
Resolution | 0.01/0.1 pH | |
Accuracy | ±0.01 pH ±1digit | |
Input current | ≤1×10-12 A | |
Input impedence | ≥1×1012 Ω | |
Stability | ±0.01 pH/3h ±1 digit | |
Temperature compensation | (0 ~ 100) °C (manual or automatic) | |
mV | Range | -1,999mV ~ 0 ~ 1,999mV |
Resolution | - 200 mV ~ 0 ~ 200 mV: 0.1 mV；others:1mV | |
Accuracy | ±0.1% FS ±1digit | |
Dissolved Oxygen | Range | (0 ~ 20.00) mg/L(ppm) (0 ~ 200.0) % |
Resolution | 0.01/0.1 mg/L(ppm) 0.1/1 % | |
Indicating value accuracy | ±0.30 mg/L | |
Response time | ≤30 s(25℃, response at 90%) | |
Zero accuracy | ≤ 0.10 mg/L | |
Temperature compensation | (0 ~ 45)℃(automatic) | |
Salinity compensation | (0 ~ 45) ppt(automatic) | |
Barometric pressure compensation | (66.0 ~ 199.9) kPa(manual) | |
Electrode type | Polarographic | |
Temperature | Range | 0~100°C |
Resolution | 0.1℃ | |
Accuracy | ±0.5℃±1digit | |
Other Technical Parameters | Data storage | 1000 groups |
Storage content | Serial number, date, time, measuring value, measuring unit and temperature value | |
Power | AAA batteries × 3 (1.5V× 3) / DC5V adaptors (USB port) | |
Dimension & Weight | Meter: (88×170×33 )mm / 313g；Portable case：(480×360×95) mm/3.2kg | |
IP rating | IP57 dustproof and waterproof |
