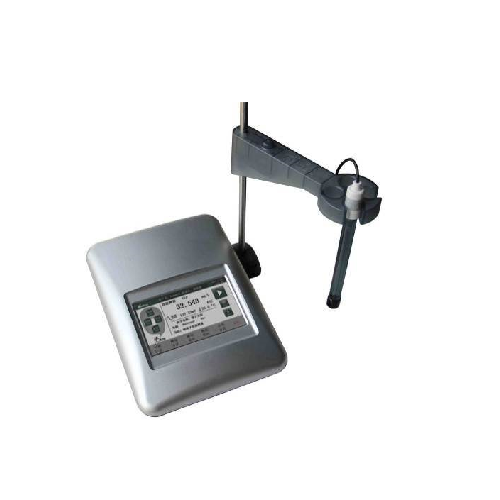

ISE meter

Measuring method

pX, Ion concentration, mV, Temperature

 Measuring range

pX

 -2.000-20.000

mV

 -2000.00 to 2000.00

Ion concentration & Unit

1.00E-9~9.99E+9    mg/L, g/L, mol/L, mmol/L

Temperature

MTC: -5.0 ～ 135.0℃    ATC: -5.0 ～ 130.0℃

Resolution

pX

0.1/0.01 /0.001

mV

0.01/0.1/1

Ion concentration

0.1/0.01 /0.001

Temperature

0.1℃

Accuracy

pX

pXI: ±0.002pX; pXII: ±0.005pX

mV

±0.1

Ion concentration

CI: ±0.3%; CII: ±0.5%

Temperature

±0.1℃

Calibration

5 points

Measuring Methods

Direct test, Sample addition, Standard addition,
  Gran method

Database

2000 groups data

Interface

RS232, USB, Printer(Optional)

Display

5 inches touch screen, color LCD, Resolution 800x480

Electrode Input

BNC

Temperature Input

NTC 30kΩ

Others

GLP mode

Ordering information

Order number

85001339

Configuration

IS339, Electrode holder, protective cover, Specific power
  supply on request(seeP15)

Optional Ion electrode

F^-,CI^-,Na⁺,S^2-,NH₄⁺,Ca²⁺,K⁺,NO₃^-

N.W./G.W.

0.7kg / 2.0kg

Dimension(L*W*H)

24cm*18cm*8cm

With packing dimension

38cm*30cm*10cm
