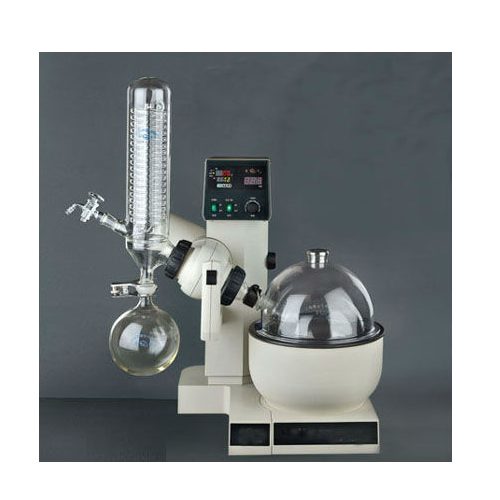

Rotary Evaporator

Detailed introduction:

Rotary evaporator using a rotary evaporator flask (flask), increasing the evaporation area, is placed in a water bath under reduced pressure, a device rotating while heating, make the solution in the bottle diffuse and evaporate. It is a basic equipment in the chemical industry, pharmaceutical industry, universities and research laboratories and other units for the manufacture and analysis of experiments which concentrated, dried and recycling.

Technical parameters:

Host machine: Rocker type buttons, speed automatic lifting,0-150 mm

Speed: Speed Digital Display 20-200 rev / min, power 40W

Heating pot: Teflon composite pot, fully enclosed heater, power 1.4KW

Temperature range: automatic temperature control, digital display water temperature, room temperature -90 degrees

Total power: 1.5KW, Voltage: 220V50HZ

Cooler: vertical, high temperature resistance qualified glass double reflux integrated ball mill mouth condenser pipe with ball mill mouth collected bottle to achieve fast loading and unloading.

Feeder: Valve type feeding tube with tetrafluoroethylene tube

Sealing ring: Viton gasket vacuum sealing gasket

Out of factory standard configuration of one 1 L ball mill mouth collection bottle, rotating bottle (standard port) 1L and 2L each one.
