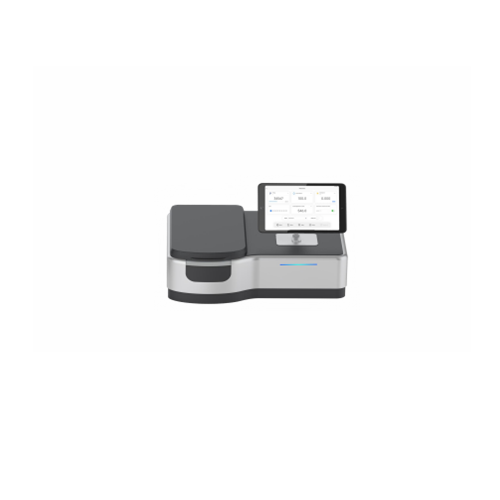

Spectrophotometer
Spectrophotometer
Model:M300/M500/M501/M501S/M600/M601/M601S
Features:
● 11-inch Touch Screen
● Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\ Protein test, Multi- wavelength test, etc
● Equipped with GLP/GMP functions, including user management, audit tracking, log inquiry, etc.
● Support real-time sending of data via email and mobile SMS.
● Adopts 3.0 Bluetooth protocol, with stable transmission and free interconnection within 10 meters.
● Can be directly connected to laser printer via Wi Fi and thermal printer via Bluetooth.
● Extensive accessories are optional, such as auto 5-cell/8-cell holder, film holder, tube rack, integrating sphere, reflection accessory, peltier/sipper system, 21 CFR compliant software, etc.
Specifications:
Model | M300 | M500 | M501 | M501S | M600 | M601 | M601S |
Optical System | Single Beam, Grating 1200 lines/mm | Double Beam, Grating 1200 lines/mm | |||||
Wavelength Range | 320-1100 nm | 190-1100 nm | 190-1100 nm | ||||
Spectral Bandwidth | 2nm | 2nm | 1nm | 0.1/0.2/0.5/1/2/4 /5nm | 2nm | 1nm | 0.1/0.2/0.5/1/2/4 /5nm |
Wavelength Accuracy | ±0. 1nm@656. 1nm, ±0.3nm@all | ||||||
Wavelength Repeatability | <=0. 1nm | ||||||
Photometric Accuracy | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) | ||||||
Photometric Repeatability | ≤0. 15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) | ||||||
Photometric Range | 0-400%T, -4~4A | ||||||
Resolution | 0.00001Abs | ||||||
Stray Light | <=0.03%T@220nm, 360nm | ||||||
Stability | ±0.0001A | ||||||
Baseline Flatness | ±0.0004A | ||||||
Noise | 0.0005A@500nm | ||||||
Work Mode | T, A, C, E | ||||||
Scanning Speed | Hi, Med, Low ( Max. 6000nm/min) | ||||||
Display | 11-inch Touch Screen | ||||||
Light Source | Tungsten lamp | Deuterium & Tungsten lamp | Deuterium & Tungsten lamp | ||||
Detector | Imported Silicon Photodiode | ||||||
Cuvette Holder | 10mm 4-cell holder | 10mm single hole cell holder | |||||
Output | Cloud connectivity/ Email/SMS/ Bluetooth/Wi Fi | ||||||
Power | AC 110-220V 50-60Hz | ||||||
Shipping Size | 810*660*390mm | 880*690*520mm | 810*660*390mm | 880*690*520mm | |||
Gross Weight | 27kg | 45kg | 27kg | 45kg | |||
Standard Accessaries | 10mm glass cuvette x 4, 10mm quartz cuvette(UV) x 2, Power cord, User's Manual | ||||||
