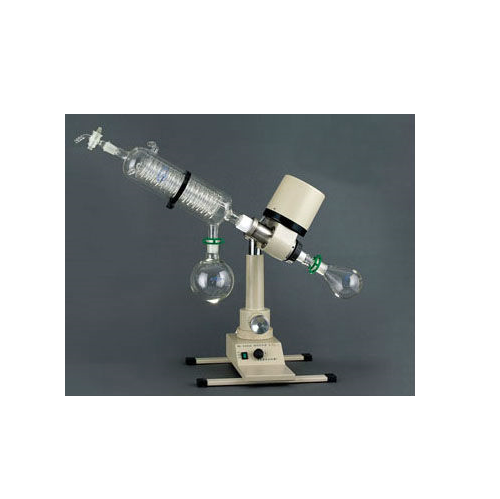

Rotary Evaporator

Application:

Rotary evaporator using a rotary evaporator flask (flask), increasing the evaporation area, is placed in a water bath under reduced pressure, a device rotating while heating, make the solution in the bottle diffuse and evaporate. It is a basic equipment in the chemical industry, pharmaceutical industry, universities and research laboratories and other units for the manufacture and analysis of experiments which concentrated, dried and recycling.

Technical parameters:

Host machine: electronic variable speed, 0-150 r / min

Lift: Hand screw up and down movements 0-100 mm

Cooler: horizontal condenser pipe with valve type feeding tube

Input Power: 50W

Voltage: -220V/50HZ

Features:

The main metal parts are made of corrosion-resistant high-quality stainless steel, long life.

Out of factory standard configuration: one 500 mL 24-mouth collection bottle, one 250 mL rotary (tomato form) bottle.
