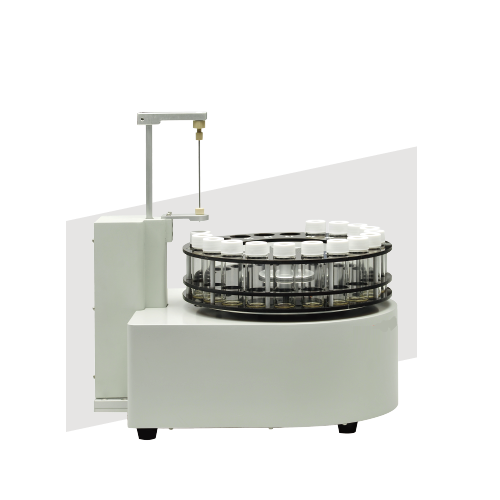

Autosampler for TOC Analyzer

Autosampler for TOC Analyzer(TOC-2000, TOC-3000)
Model ID: AS-D20

Autosampler AS-D20/AS-W20 are optional accessories of LAB-KITS TOC-2000/TOC-3000 analyzer.

The compact design with powerful auto sampling function could save 80% measurement time.

The positioning system adopts multi-sensors for monitoring which ensures extremely high precision.



Features

Compact design, only occupy little space

20 positions, meet most of experiment needs

Easy to operate, no need special operation training

Equipped with USB port for PC connection

Perfectly work with LAB-KITS TOC analyzer.

Equipped with multi-sensors for real-time monitoring which ensures precision positioning and operation safety.

No need special calibration or maintenance after long time use



Technical specification

Model

AS-D20

AS-W20

Sample   bottle volume

30ml

60ml

Rated   power

120W

120W

Relative   humidity

≤85%

≤85%

Injection   arm stroke

85mm

85mm

Max.   number

19

19

Power   adapter

AC   100-240V,50/60Hz

AC   100-240V,50/60Hz

Ambient   temperature

0-40

0-40

Size

265*373*395mm

265*373*395mm
