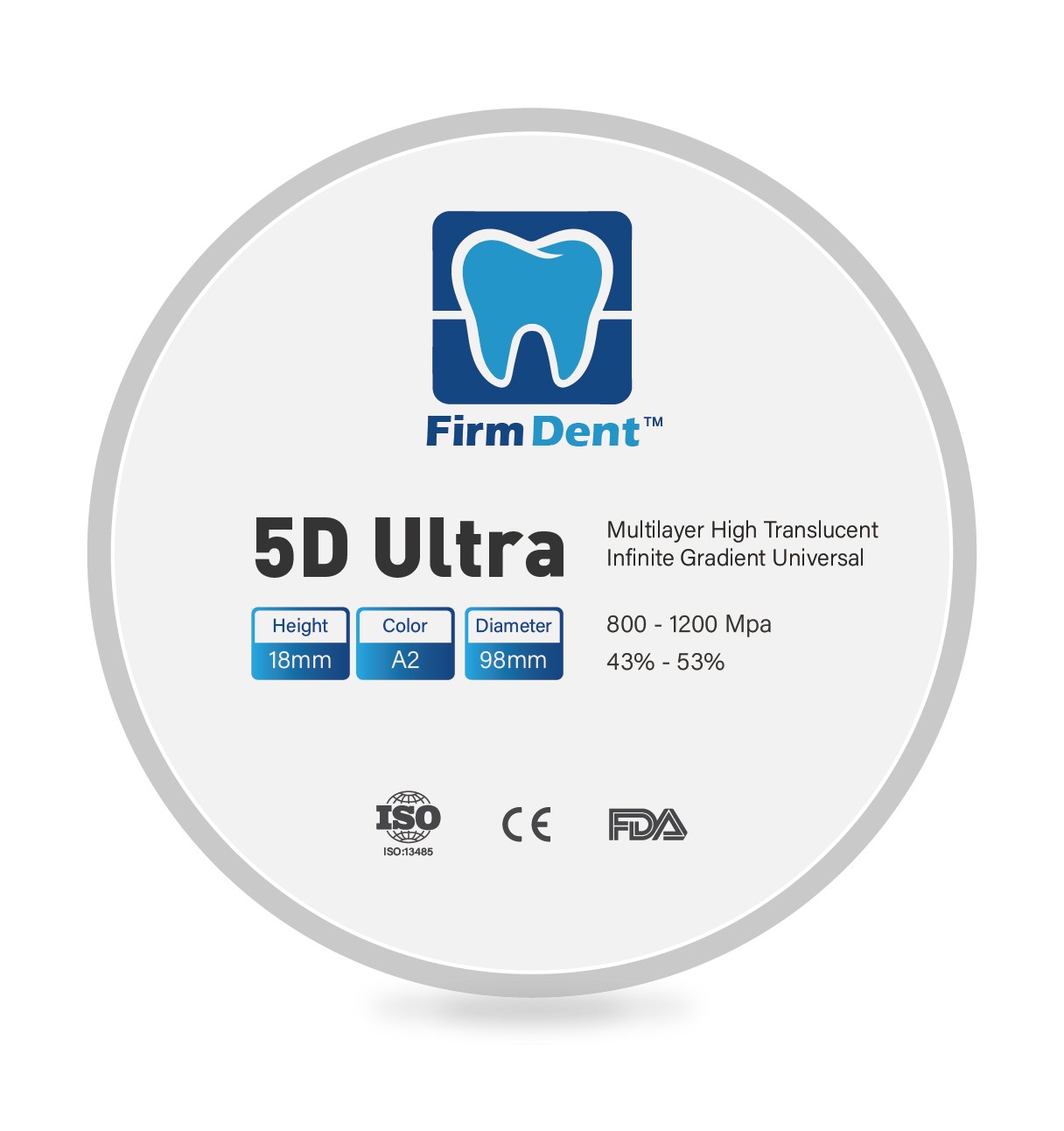

FirmDent 5D Ultra Multilayer High Translucent Infinite Gradient Universal Dental Zirconia Block
Competitive Advantages
1. Raw Material Process: Uniform granulation + powder mixing and sieving, ensuring stable performance from the source.
2. Forming & Sintering: Customized formula + multi-stage temperature control, resulting in a dense and uniform crystal structure.
3. Core Performance: Excellent balance of strength and translucency, compatible with a wide range of clinical cases.
4. Machining Characteristics: Machining limit edge: 0.01mm, single crown thickness: 0.5mm.
5. Sintering Performance: Wide sintering temperature range, with high density, no deformation, and no chipping.
6. High Cost-Effectiveness: Quality benchmarked against international brands, offering exceptional value beyond expectations.
Physical Characteristics
| Technical specifications | 5D Ultra |
| Density before sintering(g.cm-3) | 3.15±0.05 |
| Density after sintering(g.cm-3) | 6.07±0.02 |
| Coefficient of thermal expansion (25-500℃)(K-1) | 10.4±0.5 |
| Bending strength after sintering (Mpa) | 800-1200 |
| Transparency(1.0±0.02mm) | 43%-53% |
| Chemical solubility after sintering(ug.cm-2) | <100 |
| Radioactivity(Bq.g-1) | <0.1 |
| Fracture toughness | 5.0 |
| Sintering temperature(℃) | 1510-1560 |
| Systems | 98mm |
| Thickness | 10mm/12m/14mm/16mm/18mm/20mm/22mm/25mm/30mm |
| Shades | A1 A2 A3 A3.5 A4/B1 B2 B3 B4/C1 C2 C3 C4/D2 D3 D4/ BL1 BL2 BL3 BL4 |
Sintering Curve

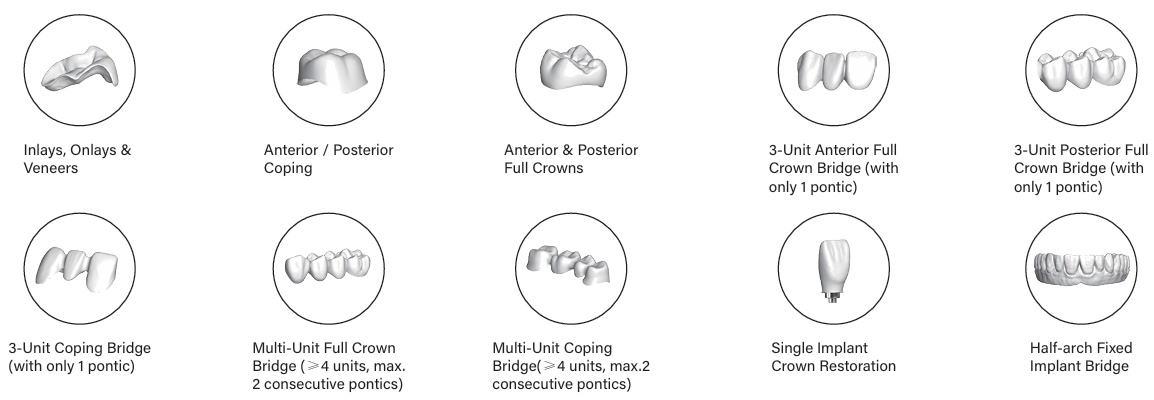

Indications
Shades
