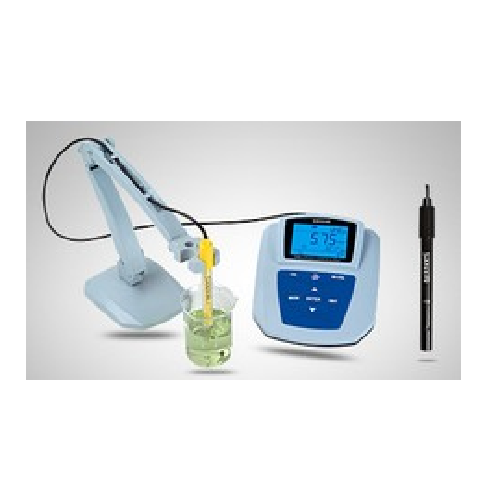

High concentration conductivity meter
High concentration conductivity meter
ELE-515-03
●Configured with two conductivity electrodes, 2401-type conductivity electrode for the conventional aqueous solution measurement; Type 2310 conductivity electrode (K = 10) for the 200 ~ 2000mS / cm high concentration solution conductivity measurement. |
●Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.
● There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.
●Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of solutions: Europe & USA series and China series
●Equips Conductivity/ATC electrode. Its measurement result is fast and precise.
● Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration.
● Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
●Conductivity measurement mode has the function of non-linear temperature compensation for high purity water.
● Meter has the only product serial number.
● Dustproof and waterproof meter meets IP54 standards
Parameters
Conductivity | Measuring range
Resolution Accuracy Temp. compensation range Electrode constant Reference temperature | Conductivity:(0 ~2000)mS/cm, Divided into six sections:(0.00~20.00)μS/cm (20.0~200.0)μS/cm (200~2000)μS/cm (2.00~20.00)mS/cm (20.0~200.0)mS/cm (200~2000)mS/cm(K=10) Resistivity：(0 ~ 100)MΩ·cm TDS: (0 ~ 100)g/L Salinity： (0 ~ 100)ppt 0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm Meter: ±0.5% FS, connect meter with electrode: ±0.80% FS (0 ~ 50)℃(automatic ) 0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1 25℃, 20℃ and 18℃ |
Temperature | Measuring range Resolution Accuracy | -10℃~ 110℃ 0.1℃ 5~ 60℃range：±0.4℃ other range：±0.8℃ |
Other Technical Parameters: | Data storage Storage content
Power Communication connector Size and weight Quality and safety certification | 600 groups Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time DC9V/300mA RS232 160 × 190 × 70mm/880g ISO9001:2008, CE and CMC |
Working Condition | Environment temperature Environmental humidity IP rating | 5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃(0.001grade) ≤75% IP54 Dustproof and waterproof |
Standard kits:
1. ELE-515-03 high concentration conductivity meter | 1set |
2. 2401T-M glass conductive electrode | 1pc |
3.2310 Conductivity electrode (K = 10) | 1pc |
4. Model 602 flexible electrode holder | 1pc |
5. 1408μS/cm conductivity standard solution(50ml) | 2btl |
6. 9V power adapter | 1pc |
7. RS232 communication cable | 1pc |
8. MP551 communication software CD | 1pc |
9. Instructions | 1copy |
10. Brief operating instructions | 1copy |
