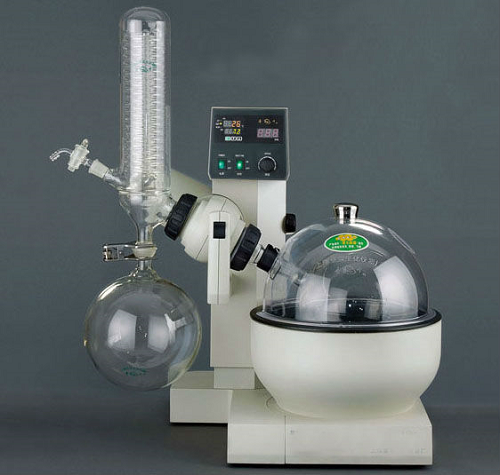

Rotary Evaporator

Application:

Rotary evaporator using a rotary evaporator flask (flask), increasing the evaporation area, is placed in a water bath under reduced pressure, a device rotating while heating, make the solution in the bottle diffuse and evaporate. It is a basic equipment in the chemical industry, pharmaceutical industry, universities and research laboratories and other units for the manufacture and analysis of experiments which concentrated, dried and recycling.

Technical parameters:

Host machine: Rocker type buttons, speed automatic lifting,0-150 mm

Speed: electronics stepless speed regulation 20-200 rev / min, power 40W

Heating pot: Teflon composite pot, fully enclosed heater, power 1.4KW

Temperature range: automatic temperature control, digital display water emperature, room temperature -90 degrees

Total power: 1.5KW, Voltage:-220V50HZ

Cooler: vertical, high temperature resistance qualified glass double reflux intergrated standard mouth conderser pipe with standard mouth collected bottle

Feeder: Valve type feeding tube with tetrafluoroethylene tube

Sealing ring: PTFT vacuum sealing ring

Features: Teflon water bath pot, transparent shield, thermal insulation, energy saving, explosion-proof, splash-proof, rust-proof and anti-pollution.

Main points introduction:

Rocker type buttons: Upper rocker pressing the host machine to up, lower rocker pressing the host machine to down.

Nut with ring: rotate clockwise automatically fasten the bottle, rotate anticlockwise fast to shirk the rotating bottle.

Tetrafluoroethylene pipes and water retaining ring.

Stepless speed control by Knob.

When the host machine adjusting the angle: Loosen or tighten with the Knob.

Out of factory standard configuration: 24-mouth collection bottle 1L, 3L each one, rotating bottle 2L / 3L each one.
